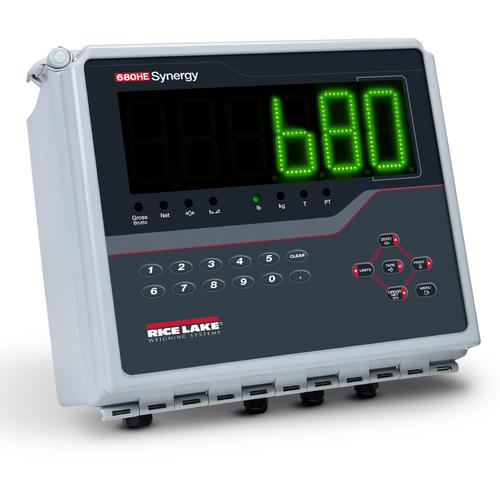

Rice Lake 680HE 197177 LED Hostile Environment Digital Weight Indicator |
|
| Rice Lake’s configurable 680 Synergy Series indicator combines powerful features found in advanced instrumentation with easy-to-use functions of more basic indicators. Designed with the customer in mind, the 680 is suitable for real-world, industrial environments. more ... |
|
Scales >
Indicators & Remote Displays >
Indicators & Remote Displays
|
|
|
|
|
|
Features
Rice Lakes 680HE hostile environment weight indicator is made to withstand the unique demands of corrosive environments. Ideal for the agriculture industry, fertilizer production and transfer, as well as other applications with a high concentration of corrosive substances such as chlorine, the 680HE uses an FRP enclosure and IP66 rating for the highest level of protection.
The bright 2.5-inch, six-digit display makes it easy to view weight from a distance in any lighting condition. The large display size and local/remote capability give the 680HE the option to be used as a secondary display. Configure display color as red or green for enhanced visibility that best suits the application.
The 680HE supports multiple communication options for connecting to multiple devices such as printers and PCs. The full numeric keypad makes tare entry easy, and four digital I/O points are available for basic weightbased control of interfaced equipment.
STANDARD FEATURES
- Bright six-digit, seven-segment two color LED display
- Battery backed time and date
- Full numeric keypad
- Three serial ports: two RS-232, one full duplex RS-485
- Numeric keyed entry allowed for tare and setpoint entry
- Formattable tickets
- Ethernet TCP/IP
- USB device
- IP66 FRP enclosure
- Four onboard configurable digital I/O points, TTL logic
OPTIONS
- Ethernet bulkhead connector
- Analog output: 16-bit resolution, 0-10?VDC, 0-20?mA, 4-20?mA
Weight:
5.00 lb
|
2 Year Manufacture Warranty
|
Other Rice Lake 680HE LED Hostile Environment Digital Weight Indicators
|
Specifications
| Model |
197177 |
199574 |
| With External RJ45 Connector (IP66) |
- |
YES |
| RATING/MATERIAL |
Rating: IP66
Material: FRP |
| Legal for Trade |
NTEP CC 19-021, Class III/IIIL, 10,000d
Measurement Canada AM6121, Class III/IIIHD, 10,000d |
| POWER |
Power: Line voltages: 100-240 VAC, 9-36V DC Frequency: 50-60 Hz |
| POWER CONSUMPTION |
12W (AC) with one 350 ohm load cell, 30W max |
| EXCITATION VOLTAGE |
10 VDC (± 5 VDC) |
| ANALOG SIGNAL INPUT RANGE |
-0.5 mV/V to +7 mV/V |
| ANALOG SIGNAL SENSITIVITY |
1 µV/graduation recommended |
| A/D SAMPLE RATE |
6.25-120 Hz, software selectable |
| RESOLUTION |
Internal: 8,000,000 counts
Display: 100,000 |
| SYSTEM LINEARITY / PI RATING |
Within 0.01% full scale |
| DIGITAL I/O |
Four configurable I/O - 5V logic |
| COMMUNICATION PORTS |
Two RS-232 (three-wire)
RS-485/422 (five-wire)
Micro USB (device)
Ethernet TCP/IP (10/100) |
| STATUS ANNUNCIATORS |
Eight LED annunciators |
| DISPLAY |
Six 2.5 in tall, seven-segment digits |
| KEYS/BUTTONS |
Flat membrane panel, tactile feel (18 buttons) |
| TEMPERATURE RANGE |
Legal: 14°F to 104°F (-10°C to 40°C)
Industrial: 14°F to 122°F (-10°C to 50°C) |
| WEIGHT |
7.9 lb (3.5 kg)
|
| WARRANTY |
Two-year limited warranty |
| EMC IMMUNITY |
10 V/m |
| Approvals |
NTEP CC 19-021, Class III/IIIL, 10,000d
Measurement Canada AM6121 Class III/IIIHD
10,000 d
UL/cUL Listed
CE Marked |
|
|
|
|
|
| |
|
|
|
|
|
