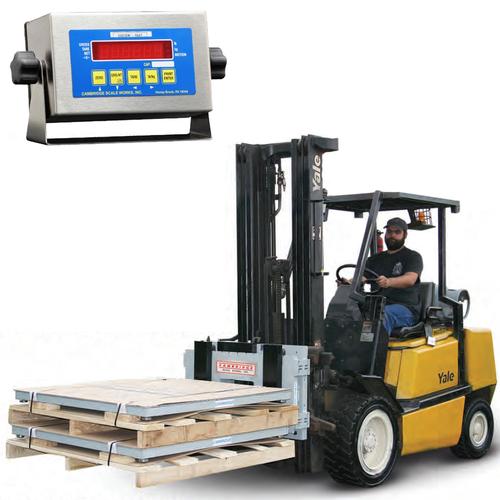

Cambridge DL-CSW-10AT-LFT-5K Legal for Trade 30 x 16 Electronic Lift Truck Scale System 5000 x 5 lb |
|
| The Cambridge Model: DL-CSW-10AT Lift Truck Scale System allows lift truck operations to quickly and precisely weigh and record individual lifts. This rugged piece of industrial equipment increases productivity and eliminates down time. There is no more waiting to get to a scale in a remote location. more ... |
|
Industrial Scales >
Pallet Scale >
Pallet Jack Scales
|
Please call 1-800-832-0055 if you need help with your order.
|
|
|
|
|
|
|
|
Features
The Cambridge Model: DL-CSW-10AT Lift Truck Scale System allows lift truck operations to quickly and precisely weigh and record individual lifts. This rugged piece of industrial equipment increases productivity and eliminates down time. There is no more waiting to get to a scale in a remote location. Time is money...streamline your customer’s operation and increase efficiency. Just lift and weigh, the operation never stops. Since Cambridge offers both standard and legal for trade systems...we have the scale for the job!
STANDARD FEATURES
- Two Environmentally Sealed Load Cells
- Large Viewing Port
- Rugged, Solid, Plate Steel Construction
- Urethane Enamel Gray Paint
- Hardened Dual Web Stainless Steel Flexures with Integrated Overload and Underload Protection
- Hardened Stainless Steel Flexure Rods
- (12) VDC Operation - Standard
OPTIONAL FEATURES
- (24-48) VDC Operation
- WI-CELL®-LT wireless carriage to indicator communication
MODEL CSW-10AT-LFT STANDARD FEATURES
- Accuracy of 0.1% of the Applied Loads
- Bright 1/2” LED Display
- Zero, Gross, Tare, Net and Print Functions
- RS-232 Port
- On/Off Switch
- Industrial Grade Aluminum, Dust-Tight Enclosure with Swivel Stand
- (12) VDC Operation - Standard
- (24-48) VDC Operation - Optional
- Weight Totalization
- Front Panel Calibration with Audit Trail
MODEL CSW-10AT-LFT OPTIONAL FEATURES Dyna-Lift Series with CSW-10AT
- WI-CELL®-LT wireless carriage to indicator communication
- WI-FI link: Transmit to customer wireless hub 802.11 B/G
- DC Thermal Tape Printer
- DC Thermal Adhesive Label Printer
- Severe Service Protection Package
- Center Loading Package
- Wet Environment Package - NEMA IV Rated
- Non-Standard Widths (Consult Factory)
- 24 VDC - 48 VDC Operation with Power Conditioning
|
|
Other Cambridge Scale Electronic Lift Truck Scale Systems
|
Specifications
| Model |
DL-CSW-10AT-LFT-5K-30x16 |
DL-CSW-10AT-LFT-5K-36x13 |
DL-CSW-20AT-LFT-5K-30x16 |
DL-CSW-20AT-LFT-5K-36x13 |
| Capacity x Readability |
5000 x 5 lb |
5000 x 5 lb |
5000 x 5 lb |
5000 x 5 lb |
| Legal for Trade |
NTEP Class II CC#03-082
Measurement Canada AM-5812C |
| Ports |
RS-232 |
RS-232 |
RS-232 |
RS-232 |
| Size |
30 x 16 in |
36 x 16 in |
30 x 16 in |
36 x 16 in |
| Shipping Weight |
375 lb |
475 lb |
375 lb |
475 lb |
|
|
|
|
|
|
| |
|
|
|
|
