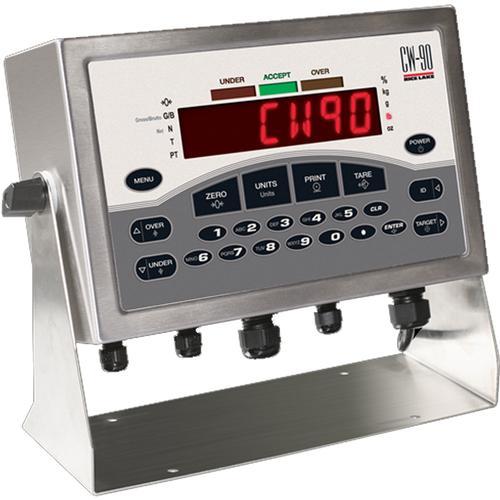

Rice Lake CW-90 Checkweigher Indicator 115 V |
|
| The Bench Checkweigher of Choice Ease of use, real-time data collection and rugged, stainless steel construction make the CW-90 digital weight indicator the equipment of choice for operators, quality control and maintenance departments. more ... |
|
Scales >
Indicators & Remote Displays >
Indicators & Remote Displays
|
|
|
|
|
|
Features
The Bench Checkweigher of Choice Ease of use, real-time data collection and rugged, stainless steel construction make the CW-90 digital weight indicator the equipment of choice for operators, quality control and maintenance departments.
The configuration menu of the CW-90 is accessible through the front keypad, eliminating the need to open the back of the indicator and expose the unit to moisture or contaminants. Access to these keypad controls can be limited to meet the operator’s needs. The CW-90 will store detailed information for up to 50 separate IDs, allowing for easy recall of previously saved information. An adjustable contrast display is visible in any environment.
Standard Features
- PreVent™ breather vent
- Storage for up to 50 IDs
- Unit of measure: kg, gm, lb, oz, lb/oz
- LED display, 0.8 in, six-digit, 14-segment
- Two full duplex serial ports
- Configurable print formats
- Audit trail tracking
- Optional communications: Ethernet, USB or fiber optic
- Four configurable digital I/O
- Reflash memory to upgrade firmware
- Auto print capability
CW-90
- Membrane keypad consisting of zero, units, print, tare, over, under, ID, target, 0-9, clear, decimal, enter, menu, power
- 304 stainless steel, IP66 rated
- Time and date
CW-90X
- Piezo keypad consisting of zero, units, print, tare, over, under, ID, target, enter, menu, power
- 304 stainless steel, IP69 K rated
- Battery backed time and date
Weight:
7.00 lb
|
2 Year Manufacture Warranty
|
Other Rice Lake Checkweigher Indicators
|
Specifications
| Model |
CW-90 |
CW-90X |
| 105970 |
105972 |
| Power |
Power - AC |
Line voltages: 115 VAC
Frequency: 50-60 Hz |
| Power Consumption |
1.5 A at 115 VAC (8 W)
0.75 A at 230 VAC (8 W) |
| Excitation Voltage |
+5 VDC 8 x 350ω or 16 x 700ω load cells |
| Analog Signal Input Range |
-0.5 mV/V - 4.5 mV/V |
| Analog Signal Sensitivity |
0.3 uV/graduation minimum
1.5 uV/graduation recommended |
| A/D Sample Rate |
7.5 to 960 Hz software selectable |
| Legal For Trade |
NTEP CC 08-092 Class III/IIIL 10,000d
Measurement Canada AM-5710
OIML R76/2006-GBI-10.02
EU Test Certificate GB-1385
UL/cUL Listed
CE marked |
| Resolution |
Display: 100,000 graduations maximum |
| Circuit Protection |
ESD, EMI, RFI protected |
| Communication Ports |
Printer port: RS-232 full duplex 20mA simplex
EDP Port: RS-232 full duplex
Baud rates: 300 to 38,400 seven or eight data bits; even, odd or no parity |
| System Linearity |
± 0.01% full scale |
| Digital I/O |
Four channels on CPU board |
| Circuit Protection |
RFI, EMI, ESD protection |
| Status Annunciators |
Designators for percent, kg, gm, lb, oz, center of zero, G/B, N, T, PT, neg, motion |
| Operating Temperature |
14° F to 104° F (-10° C to 40° C) |
| Display |
Large 0.8 in 14-segment, six-digit high-intensity red LED display |
| Keys/Buttons |
Membrane keypad, 23 keys with international symbols |
Piezo keypad, 11 keys with international symbols |
| Rating/Material |
IP66, stainless steel |
IP69K, stainless steel |
| Warranty |
Two-year limited warranty |
Three-year limited warranty |
| Approvals |
NTEP CC 08-092,
Class III/IIIL 10,000d
Measurement Canada AM-5710
OIML R76/2006-GBI-10.02
EU Test Certificate GB-1385
UL/cUL Listed
CE marked |
|
|
|
|
|
|
Optional Accessories
more info
|
Rice Lake 77142 Ethernet TCP/IP for CW-90 and CW90X
Rice Lake 77142 Ethernet TCP/IP for CW-90 and CW90X
|
|
more info
|
Rice Lake 108671 Wireless LAN card Wi-Fi 802.11 A/B for CW-90 and CW90X
Rice Lake 77142 Wireless LAN card Wi-Fi 802.11 A/B for CW-90 and CW90X
|
|
more info
|
Rice Lake 93245 USB Port (PC connection only) cable included for CW-90 and CW90X
Rice Lake 93245 USB Port (PC connection only) cable included for CW-90 and CW90X
|
|
more info
|
Rice Lake 171968 Firmware download cable for CW-90 and CW90X
Rice Lake 171968 Firmware download cable for CW-90 and CW90X
|
|
more info
|
Rice Lake 96736 Fiber optic board for CW-90 and CW90X
Rice Lake 96736 Fiber optic board for CW-90 and CW90X
|
|
more info
|
Rice Lake 78026 Fiber optic, duplex cable 100 ft for 320IS, CW-90 and CW90X, 882IS
Rice Lake 78026 Fiber optic, duplex cable 100 ft for 320IS, CW-90 and CW90X
|
|
more info
|
Rice Lake 117358 WeighVault™ for CW-90 software (requires part number 77142 or 108671) for CW-90 and CW90X
Monitor Your Production with WeighVault
This specialized PC software for use with Rice Lake’s CW-90 and CW-90X checkweighers makes data entry easier than ever while expanding data storage and reporting abilities.
As weighing occurs, WeighVault stores the details of each transaction for either a single scale or multiple scales. A variety of transaction and productivity reports can then be exported into word processing, spreadsheet or PDF formats for better control over weight data and overall business performance.
Predicting growth? There’s no better reason to explore WeighVault software. WeighVault users can boost their checkweigher’s 50 product ID storage limitation to nearly limitless potential, and manage as many scales as necessary. And with a direct connection to your PC you’ll be able to quickly program, edit and manage each checkweigher and each unique product ID right from your PC’s keyboard.
- Specialized PC software makes data entry easy
- Boost product ID storage to nearly limitless potential, and manage as many scales as necessary
- Eliminates front-panel entry of ID parameters
- Quickly program, edit and manage scales and each unique product ID right from your PC
- Stores the details of each transaction for either a single scale or multiple scales
- Collects data as transactions occur and provides detailed transaction and productivity reports
- Allows users to add, edit and access IDs over a network connection
- Reports can be exported into word processing, spreadsheet of PDF formats
|
|
|
|
|
|
|
|
|
