Imada DB-1X DATA INPUT BUTTON

DB-1 is a simple, compact, one channel interface that enables the user to send measurement data to a PC running SW-1, Imada data acquisition software, or other software. more ...
Scales > Force Gauge > Accessories
Imada DB-1X DATA INPUT BUTTON




Have Questions?
Call USoremail Us
Our Staff will be glad to help

Imada DB-1X DATA INPUT BUTTON

Price: $145.00


Available to Ship


View Features

Imada
SKU: DB-1X

Features

DB-1 - DATA INPUT BUTTON

DB-1 is a simple, compact, one channel interface that enables the user to send measurement data to a PC running SW-1, Imada data acquisition software, or other software.

Single data mode

This mode simplifies peak measuring tests because it also ‘zeros’ the gauge after sending the data to the computer, thus eliminating the need to reset manually for each test.

Automatic acquisition mode allows users to select different acquisition rates from 20 data/second to 1 data/999.9 seconds. Start data acquisition by clicking the button, then click again to stop, which simplifies start/stop functions by eliminating the need to use computer mouse and screen to control testing. This allows users to focus on the testing rather than the PC and the data acquisition spreadsheet.

As a visual confirmation, the LED lamp will light up for both single data and automatic acquisition modes when data is being sent to the computer.

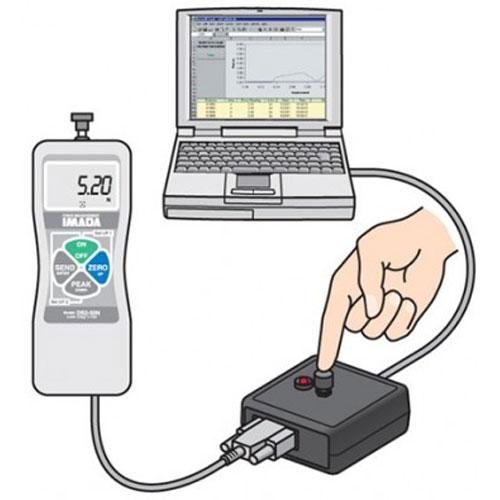

No external power supply is needed as power is supplied through the PC. Connect Imada gauges to the data input button with cable CB203 and the computer to the data button with a 6 DB9 serial cable (included with DB-1).

DB-1 can also be initiated with a remote switch.

DB-4 data button is available for Digimatic output.


Weight: 5.00 lb
