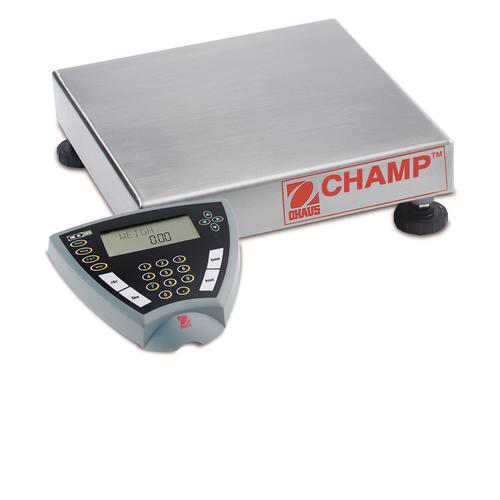

Ohaus CQ10R33 Champ™ Multifunction Bench Scales NTEP, 25lb x 0.002lb |
|
| From general weighing needs to precise industrial requirements, there’s a Champ™ SQ Multi-Functional Bench Scale that’s just right for your application and budget.When you need custom performance, the Champ’s Multi-Functional models offer versatility with a choice of an OHAUS CD31 or CD33 indicator. Every Champ SQ Multi-Functional Bench Scale comes with an impressive range of features more ... |
|
Scales >
Industrial Scales >
Bench Scales
|
|
Have Questions?
Our Staff will be glad to help |
|
|
|
|
|
|
|
|
|
Features
From general weighing needs to precise industrial requirements, there’s a Champ™ SQ Multi-Functional
Bench Scale that’s just right for your application and budget.When you need custom performance, the
Champ’s Multi-Functional models offer versatility with a choice of an OHAUS CD31 or CD33 indicator.
Every Champ SQ Multi-Functional Bench Scale comes with an impressive range of features
Standard Features Include:
- Capacities from 10kg/25lb to 250kg/500lb
- NTEP 1:5,000 Legal-for-Trade type approved resolution
- 1:10,000 to 1:12,500 maximum displayed resolution
- Stainless steel platter with painted steel frame
- RS232 interface standard with GMP/GLP data output: time, date, operator number,
scale ID number, project number and name
- Weighing, parts counting, dynamic/animal weighing, percent weighing,
and checkweighing modes
| Model Number |
CQ10R33 |
CQ25R33 |
CQ50L33 |
CQ100L33 |
CQ250XL33 |
| Default Capacity x Readability (lb / kg) |
25 lb x 0.002 lb |
50 lb x 0.005 lb |
100 lb x 0.01 lb |
250 lb x 0.02 lb |
500 lb x 0.05 lb |
| NTEP Capacity x Readability (lb / kg) |
25 x 0.005 lb |
50 x 0.01 lb |
100 x 0.02 lb |
250 x 0.05 lb |
500 x 0.10 lb |
| Max Displayed Resolution |
1:12,500 |
1:12,500 |
1:10,000 |
1:12,500 |
1:12,500 |
| Platform Size |
12 x 12 x 4 in |
12 x 12 x 4 |
18 x 18 x 4.1 |
18 x 18 x 4.1 |
24 x 24 x 6.4 |
Weighing Units |
lb, kg, g, custom unit |
| Mode |
Static Weighing, Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold |
| Display |
1-inch / 25.4mm digit height, 2-line LCD, weigh and prompt message |
| Auto Zero Tracking |
Off, 0.5, 1 or 3 divisions |
| Keyboard |
8 function, 4 cursor membrane keys (with CD31)
8 function, 4 cursor, 11 numeric membrane keys (with CD33) |
| Construction |
Stainless steel platform / Painted steel frame |
| Stabilization Time |
1 – 4 seconds depending upon filter selection |
| Power |
100-240 VAC / 50-60Hz internal universal power supply / 6 ‘C’ cell batteries (not supplied) with 80 hour life |
| Dimensions (W x H x D) |
12 x 3.7 x 23.2 x 12 x 16.7 in |
18 x 4.5 x 37 x 18 x 22.7 in |
24 x 5.4 x 37 x 24 x 28.7 in |
| Net Weight (lb/kg) |
20 lb |
52 lb |
76 lb |
| Operating Temperature |
14° F to 104° F / -10° C to 40° C |
Weight:
20.00 lb
|
|
