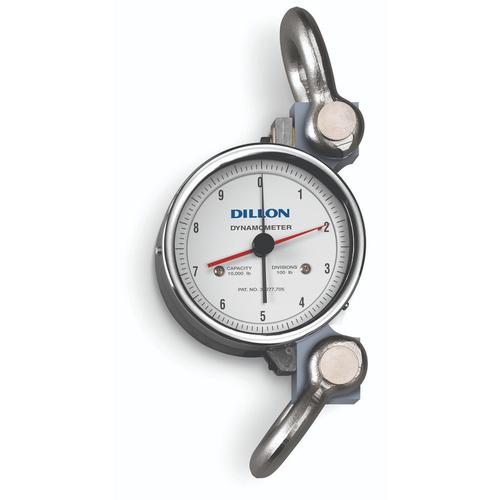

Dillon AP 30007-0083 Dynamometer, 10 in dial, 10000 x 50 lb

Features accuracy of +/-0.5% of full range, choice of 5" or 10" dials, anti-parallax dial and pointer, zero control, maximum indicator, generous shackle openings, heavy-duty roller bearings and a wide operating temperature range. 500 to 100,000 pounds. more ...
Scales > Crane Scales / Dynamometers > Dynamometers
Dillon AP 30007-0083 Dynamometer, 10 in dial, 10000 x 50 lb Clall for more info
Dillon AP 30007-0083 Dynamometer, 10 in dial, 10000 x 50 lb
FREE Ground Shipping *


Free 2nd year Calibration with purchase of a Dillon AP Dynamometer
Free with Purchase
Free 2nd year Calibration with purchase of a Dillon AP Dynamometers or Dillon AP Crane Scale
Free 2nd year Calibration with purchase of a Dillon AP Dynamometers or Dillon AP Crane Scale


Price: $1,330.25


In Stock - Ships within 24 hours

View Features

Dillon
SKU: 30007-0083
UPC: B008VFGW6C

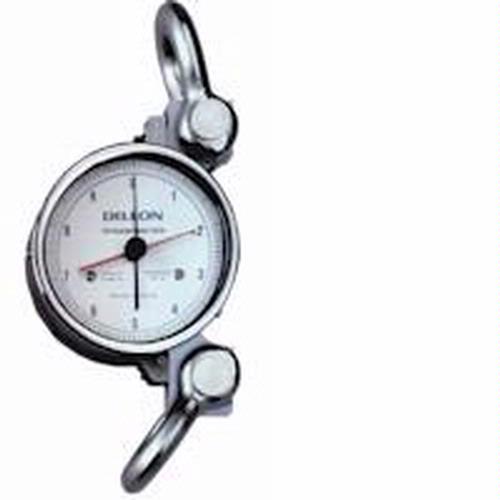

Other Dillon Dynamometer, 10 in Dial

AP Dynamometer
10 in dial
200 x 1 kg

Price: $735.00

AP 30007-0075
Dynamometer
10 in dial
8000 x 50 lb

Price: $1,050.00

AP 30007-0133
Dynamometer
10 in dial
500 x 2 kg

Price: $1,079.50

AP 30007-0026
Dynamometer
10 in dial
1000 x 5 lb

Price: $1,185.75

AP 30007-0034
Dynamometer
10 in dial
2000 x 10 lb

Price: $1,185.75

AP 30007-0158
Dynamometer
10 in dial
1000 x 5 kg

Price: $1,228.25

AP 30007-0059
Dynamometer
10 in dial
5000 x 20 lb

Price: $1,236.75

AP 30007-0125
Dynamometer
10 in dial
2000 x 10 kg

Price: $1,283.50

AP 30007-0083
Dynamometer
10 in dial
10000 x 50 lb

Price: $1,330.25
You are viewing this product

AP 30007-0174
Dynamometer
10 in dial
5000 x 20 kg

Price: $1,398.25

AP 30007-0109
Dynamometer
10 in dial
20000 x 100 lb

Price: $1,802.00

AP 30007-0117
Dynamometer
10 in dial
10000 x 50 kg

Price: $1,882.75

AP 300070117KA
Dynamometer
10 in dial
with Klaxon Alarm 10000 x 50 kg

Call For Price

AP 30784-0017
Dynamometer
10 in dial
30000 x 200 lb

Price: $4,879.00

AP 30784-0033
Dynamometer
10 in dial
50000 x 200 lb

Price: $4,879.00

AP 30784-0058
Dynamometer
10 in dial
20000 x 100 kg

Price: $5,112.75

Features

Originally designed to measure the tension on telephone wires, the dynamometer has proven to have limitless versatility as a tension, traction and weight measuring instrument. It has been used for such diverse jobs as mounting cables for bridges, adjusting tension on guy wires, field testing chain, rope and wire -- anything requiring precision force or tension measurement. For critical overhead lifting applications, we suggest the Dillon APxtreme dynamometer.

Utility companies count on the Model AP dynamometer. Communication tower erectors employ several dynamometers during installation to properly tension guy wires. The Dillon dynamometer is also working every day for the aviation industry and is used worldwide in military installations.


Ships with dynamometer, shackles and pins, maximum pointer, zero adjust for tare, molded plastic carrying case for 5 models or rugged plywood storage crate for 10 models, plus calibration certificate.

  • Accuracy: +/-0.5% of full range - if precision data is what you need, theres a Dillon dynamometer for every force measurement task.
  • Wide range of capacities: 500 to 100,000 pounds or 200 to 50,000 kilograms
  • Choice of 5 (125 mm) or 10 (250 mm) dials
  • Anti-parallax dial and pointer offers accurate readings from varying sight lines. Dial is mar and fog resistant
  • Zero control (rear of case) can cancel preset loads up to 20% of capacity
  • Maximum indicator remains in position to indicate peak load point after load is removed from instrument
  • Mechanism case is constructed of high strength composite plastic or rugged cast aluminum -- resists heavy blows
  • Generous shackle openings mate with most hooks and hardware
  • Heavy duty roller bearings allow free rotation of shackle pins
  • Flexing beam fabricated from high specification steel. Heat treated for maximum strength
  • Wide operating temperature range: -50 to 140 F (-45 to 60 C)
  • Safety factor of 4.5:1 or better up to 30,000 lb (15,000 kg) - beats all competitors

Part Number

Capacities & Dial Divisions (lb)

Part Number

Capacities & Dial Divisions (kg)

Ultimate Safety Factor

Weight / Ship Wt
(lbs)

5" DIAL

LOW

30006-0019

500 x 5

30006-0142

200 x 2

5:1

9 / 15

30006-0027

1000 x 10

30006-0134

500 x 5

5:1

9 / 15

30006-0035

2000 x 20

30006-0159

1000 x 10

5:1

9 / 15

30006-0043

4000 x 25

30006-0126

2000 x 20

5:1

9 / 15

30006-0050

5000 x 50

n/a

n/a

5:1

9 / 15

30006-0068

6000 x 50

n/a

n/a

5:1

9 / 15

30006-0076

8000 x 50

30006-0167

4000 x 25

5:1

9 / 15

30006-0084

10,000 x 100

30006-0175

5000 x 50

5:1

9 / 15

MED

30006-0092

15,000 x 100

n/a

n/a

5:1

9 / 15

30006-0100

20,000 x 200

30006-0118

10,000 x 100

4.5:1

9 / 15

10" DIAL

LOW

30007-0018

500 x 2

30007-0141

200 x 1

5:1

16 / 26

30007-0026

1000 x 5

30007-0133

500 x 2

5:1

16 / 26

30007-0034

2000 x 10

30007-0158

1000 x 5

5:1

16 / 26

30007-0042

4000 x 20

30007-0125

2000 x 10

5:1

16 / 26

30007-0059

5000 x 20

n/a

n/a

5:1

16 / 26

30007-0067

6000 x 25

n/a

n/a

5:1

16 / 26

30007-0075

8000 x 50

30007-0166

4000 x 20

5:1

16 / 26

30007-0083

10,000 x 50

30007-0174

5000 x 20

5:1

16 / 26

MED

30007-0091

15,000 x 100

n/a

n/a

5:1

16 / 26

300007-0109

20,000 x 100

30007-0117

10,000 x 50

4.5:1

16 / 26

HIGH

30784-0017

30,000 x 200

30784-0041

15,000 x 100

5:1

64 / 98

30784-0025

40,000 x 200

30784-0058

20,000 x 100

4:1

64 / 98

30784-0033

50,000 x 200

n/a

n/a

3:1

64 / 98

30332-0014

100,000 x 500

30332-0022

50,000 x 200

4:1

226 / 315


Weight: 26.00 lb
