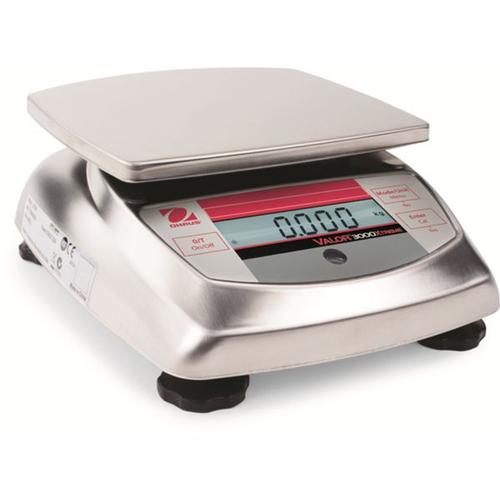

Ohaus Valor 3000 Xtreme Digital Compact Scales
Authorized Dealer
The Valor? 3000 Xtreme Compact Precision Scale continues the OHAUS tradition of building high quality, durable products that are easy to use and hard to beat. The Valor 3000 Xtreme takes these OHAUS virtues to a new level by offering high precision 20,000d readability, durability, and ease-of-use, encased in a sleek and fully stainless steel compact housing.

Spec Chart

OHAUS is proud to announce the launch of its latest digital portable scale for lab, industrial and food service applications: the Ohaus Valor 3000 Xtreme digital compact scale. The Valor 3000 Xtreme combines the durability of a full stainless steel housing with the accuracy of the Scout Pro series, delivering precision up to 20,000 d.

The Valor? 3000 Xtreme Compact Precision Scale continues the OHAUS tradition of building high quality, durable products that are easy to use and hard to beat. The Valor 3000 Xtreme takes these OHAUS virtues to a new level by offering high precision 20,000d readability, durability, and ease-of-use, encased in a sleek and fully stainless steel compact housing. Washdown versions and OIML approved models ensure that the Valor 3000 Xtreme meets the needs of even the most demanding environments.

Ohaus Valor 3000 Xtreme Digital Compact Scales

FREE UPS Ground Shipping
(within the 48 continental US States)

For a limited time only
Add to Cart to see Lower Price

Sandwich Pan (80251147), Add $46.80
French Fries Holder (80251148), Add $46.80
Ice Cream Cone Holder (80251149), Add $46.80
Optional Hard-Shell Carrying Case (p/n 80251216), Add $74.70
Polypropylene Maxi-Scoop™ (10"dia x 2.5" deep) with Pouring Spout (3369-10), Add $22.50
Stainless Steel Scoop (12 x 6 x 2.75") (80250400), Add $42.30
Stainless Steel Scoop (17 x 11 x 3.4") (80250954), Add $53.10

Spec Chart

Legal For Trade

Standard Features

Extreme Design
Extreme design means that OHAUS took a clean sheet and focused on offering the most durable and portable scale product available. Full T304 stainless steel housing – top and bottom -- with added chemical resistance in the keypad and removable stainless steel weighing pan are durable and easy to clean. The Valor 3000 Xtreme is NSF listed, USDA approved and supports HACCP systems. For use in wet applications, the Valor 3000 Xtreme offers NEMA 4X/IP65 water-resistant models.
Ohaus Valor Xtreme Compact Scales
Extreme Protection
Along with its stainless steel design, the Valor 3000 Xtreme offers technically-advanced overload protection rated at 10x capacity, ideal for rough environments where the capacity is frequently exceeded.
Extreme Performance
The Valor 3000 Xtreme offers resolutions to 20,000d, providing precise measurements in demanding environments. The OHAUS QuadraStance™ design with four large, adjustable rubber feet ensures firm contact with the benchtop. User-selectable filtering, auto-zero tracking and stability settings allow the Valor 3000 Xtreme to operate accurately in drafty and unstable environments.
Ohaus Valor Xtreme Compact Scales
Extremely Friendly
OHAUS’ SmarText™ user interface utilizes a bright, backlit LCD and simple text prompts to guide users through application use and scale setup, making the Valor 3000 Xtreme very easy to use.
Other Standard Features:
Removable stainless steel pan, digital external calibration software, selectable environmental settings, fast stabilization with selectable auto-tare, integrated level bubble (select modes) and adjustable feet, bright backlit display, selectable auto-off, selectable weighing units, selectable power-up unit, included AC power adapter
Accessories:
Oversized sandwich platter, french fry platter, ice cream platter, carrying case (phone 800-832-0055 for availablilty)


Application Modes

Each Valor 3000 Xtreme comes with software designed for simple use and maximum throughput:

Percentage Weighing
This mode is great for compounding, mixing ingredients and formulation, allowing users to compare the weight of a sample as a percentage of a reference weight. This function allows for quick portioning and checking of multiple sample weights against a target, as well as for quickly preparing multiple samples of the same size. The Valor 3000 Xtreme can automatically compute Baker’s Percentages for use in retail bread baking and other foodservice applications.

Specific Gravity Determination
This mode is perfect for rapidly and easily determining the specific gravity of a sample without the need for manual calculations. Not only can this be critical in materials testing, it is also useful for checking the density and aeration of mixes and products for food processing and foodservice applications.

Ohaus Valor Xtreme Compact Scales

Washdown Models

These models come with additional features not found in the dry-use versions:

  • Full NEMA 4X/IP65 protection
  • Up-front level bubble
Ohaus Valor Xtreme Compact Scales

Valor 3000 Xtreme Compact Scales

Model Number

Non Washdown Models NEMA 4X IP-65 Washdown Models
V31XH202 V31XH402 V31XH2 V31XH4 V31X501 V31X3 V31X6 V31XW301 V31XW3 V31XW6
V31XH202 V31XH402 V31XH2 V31XH4 V31X501 V31X3 V31X6 V31XW301 V31XW3 V31XW6
$483.65
$625.60
$483.65
$663.85
$371.45
$337.45
$337.45
$398.65
$398.65
$398.65

Capacity x Readability

 lb  0.4409 x 0.00005 0.88185 x 0.00005 4.409 x 0.0005 8.8185 x 0.0005 1.1025 x 0.0005 6.615 x 0.002 13.225 x 0.005 0.6615 x 0.0005 6.615 x 0.002 13.225 x 0.005
 oz  7.055 x 0.0005 14.1095 x 0.0005 70.55 x 0.005 141.095 x 0.005 17.635 x 0.005 105.8 x 0.02 211.65 x 0.05 10.585 x 0.005 105.80 x 0.02 211.6 x 0.05
7 x 1/8 14 1/8 x 1/8 70 ˝ x 1/8 141 1/8 x 1/8 17 5/8 x 1/8 105 ˝ x 1/8 211 ˝ x 1/8 10 ˝ x 1/8 105 ˝ x 1/8 211 ˝ x 1/8
 lb:oz  N/A N/A 4 lb: 6.55 oz x 0.01 oz 8lb:13.1 oz x 0.01 oz 1lb:1.64 oz x 0.01 oz 6 lb : 9.8 oz x 0.02 oz 13 lb: 3.6 oz x 0.05 oz N/A 6 lb : 9.80 oz x 0.02 oz 13 lb: 3.6 oz x 0.05 oz
N/A N/A 4 lb : 6 ˝ oz x 1/8 oz 8lb:13 1/8 x 1/8 oz 1lb:1 5/8 oz x 1/8 oz 6 lb : 9 ˝ oz x 1/8 oz 13 lb : 3 ˝ oz x 1/8 oz N/A 6 lb : 9 ˝ oz x 1/8 oz 13 lb : 3 ˝ oz x 1/8 oz
 kg  0.2 x 0.00001 0.4 x 0.00001 2 x 0.0001 4 x 0.0001 0.5 x 0.0001 3 x 0.0005 6 x 0.001 0.3 x 0.0001 3 x 0.0005 6 x 0.001 kg
 g  200 x 0.01 400 x 0.01 2000 x 0.1 4000x 0.1 500 x 0.1 3000 x 0.5 6000 x 1 300 x 0.1 3000x 0.5 6000 x 1
 fl oz  6.763 x 0.0005 13.5255 x 0.0005 67.63 x 0.005 135.255 x 0.005 16.905 x 0.005 101.44 x 0.02 202.9 x 0.05 10.14 x 0.005 101.44 x 0.02 202.9 x 0.05

NTEP Model

- - - - - V31X3N V31X6N - V31XW3 V31XW6
- - - - - $393.55
$393.55
- $398.65
$398.65

NTEP
Capacity x Readability

 lb  - - - - - 6.6 × 0.005 13.225 × 0.005 - 6.6 x 0.005 13.225 x 0.005
 oz  - - - - - 105.8 × 0.05 211.6 × 0.1 - 105.8 x 0.05 211.6 x 0.1
 kg  - - - - - 3 × 0.001 6 × 0.002 - 3 x 0.001 6 x 0.002
 g  - - - - - 3000 × 1 6000 × 2 - 3000 x 1 6000 x 2

Legal-for-Trade:

  NTEP
CoC No. 08-008
  NTEP
CoC No. 08-008

Weighing Units

lb, decimal or fractional oz, lb:oz, fluid oz (of water), kg, g

Modes

Simple weighing, percent weighing, combined zero/tare, specific gravity (S)

Keyboard

Three mechanical switches (1 left; 2 right)

Calibration

Digital external span calibration

Display

7 segment, 6 digit, 0.78in / 20mm high LCD with white LED backlight

Display Indicators

Center of zero, stability, over/under load, weighing unit and battery status

Tare Range

Full capacity by subtraction

Stabilization Time

3 seconds or less

Auto-Zero Tracking

Off, 0.5, 1 or 3 divisions

Operating Temp. / humidity

32°F to 104°F (0°C to 40°C) at 10% to 95% relative humidity
Non-condensing, up to 2.5 miles / 4000m above sea level

Power

9 VDC 0.5A AC wall adapter 100-120V AC, 50.60 Hz (included) or four 1.5 volt ?C? batteries (not included)

Battery Life

50 hours with alkaline cells 120 hours with alkaline cells 50 hours with alkaline cells

Dimensions L x W x H

8.5 x 7.3 x 3 in / 218 x 186 x 77 mm

Pan size L x W

4.7 in /120 mm dia. 5.8 x 6.2 in / 146 x 158 mm 4.7 in /120 mm dia. 5.8 x 6.2 in / 146 x 158 mm

Carton Dimensions L x W x H

12.79 x 9.92 x 5.51 in / 325 x 252 x 140 mm

Net Weight

2.6 lb / 1.2 kg 2.9 lb / 1.3 kg 2.6 lb / 1.2 kg 3.1 lb / 1.4 kg

Shipping Weight

4.3 lb / 2 kg 4.6 lb / 2.1 kg 4.3 lb / 2 kg 4.8 lb / 2.2 kg

Ingress Protection
(battery power only)

  Washdown NEMA 4X/IP65

Accessories

Model 80251147 80251148 80251149 80251216
V31XH202 V31XH402 V31XH2 V31XH4
$46.80
$46.80
$46.80
$74.70
Sandwich Pan French Fries Holder Ice Cream Cone Holder Hard-Shell Carrying Case
more ... more ... more ... more ...



Ohaus Valor Xtreme Compact Scales



Approvals:

  • Food Service: NSF Listed/Certified to NSF/ANSI 169-2005 Special Purpose Food Equipment and Devices (formerly NSF C-2); USDA/AMS accepted to NSF/3-A 14159-1 Hygiene Requirements for the Design of Meat and Poultry Processing Equipment; meets requirements for HACCP conformity
  • Electrical/Emissions: CE listed, meets AS/NZS4251.1 Emission/AS/NZS4252.1 Immunity, FCC Class A Part 15 operation, Industry Canada Class A. UL AC power pack
    Compliant to Directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment (ROHS)
    Compliant to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE)
  • Approved/Legal for Trade: OIML R76 Class III and EC Type Approval (select models -- Phone 800-832-0055 for availability)
  • Quality: Ohaus quality management system registered to ISO 9001:2000

Ohaus Valor 3000 Food Service Accessories

Ohaus Valor 3000 Sandwich PanOhaus Valor 3000 Sandwich Pan Sandwich Pan
Model 80251147 - $46.80
Used for weighing sandwiches and other long food items. This stainless steel accessory is a single pan which clips over the stainless steel platform of the Valor 3000 Xtreme. This accessory comes packaged in a polybag with padding and label. 11 W x 5.9 D x 0.4 H inches (28 x 15 x 1 cm)
Ohaus Valor 3000 French Fries HolderOhaus Valor 3000 French Fries Holder French Fries Holder
Model 80251148 - $46.80
Used for weighing french fries, onion rings, tacos, and other foodservice items which are required to remain upright during weighing. This stainless steel accessory is a single pan which clips over the stainless steel platform of the Valor 3000 Xtreme. The dimensions of the front “wall” of the holder is 4.75in (12.1cm) wide by 1.13in (2.9cm) high. The dimensions of the back “wall” is 4.75in (12.1cm) wide by 2.75in (7cm) high. The distance between the front and back walls is 3.5in (8.9cm). This accessory comes packaged in a polybag with padding and label.
Ohaus Valor 3000 Sandwich PanOhaus Valor 3000 Sandwich Pan Ice Cream Cone Holder
Model 80251149 - $46.80
Used for weighing ice cream, frozen custard, gelati, and other foodservice items where the cone has to be held to keep the item upright. This stainless steel accessory is a single pan which clips over the stainless steel platform of the Valor 3000 Xtreme. The upper platform measures 5.9in (15cm) wide by 3.5in (8.9cm) deep. There are two holes in the upper platform, one 2.25in (5.7cm) and the other 1.5in (3.8cm). The height of the upper platform is 4in (10.2cm) above the lower platform. This accessory comes packaged in a polybag with padding and label.
