Imada SV-05S Micro-Movement Precision Wheel Test Stand with Distance Meter

SV-series Micro Movement Precision Wheel Test Stand

Imada SV-05 Micro Meter Test Stand
Price: $1250

Shipping Wt: 30 lbs.

  • One stand does both compression (push) and tension (pull) tests
  • Reduced backlash and fine movement for highly precise measurements
  • Stroke 2.75" (travel distance per knob rotation 0.9"/22.5mm)
  • Maximum Load 4.4 lbs (2 kg)

The SV-05S Micro-Movement Test Stand is designed for small deflection measurements such as membrane switches and other small micro switches. The minimal backlash is ideal for bi-directional testing where both the compression and tension measurements are made during the same test. The standard model SV-05S includes a highly accurate digital distance meter. Both models accept any Imada force gauge with a maximum capacity of 4.4 lbs (2 kg).

Distance Meter Specifications

Display Push button for inch/mm, zero set and on/off
Resolution 0.0005"/0.01 mm
Accuracy 0.1% of reading or 0.005"/0.1mm,
whichever is greater

Optional Data Buttons and Data Software
Imada DB-Series data input buttons work with Imada SW software to automate data collection from Imada force or torque gauges. Enter peak measurements into the spreadsheet and "zero" the gauge with a touch of the button. Minimize computer time and mouse usage
Click here for more info...

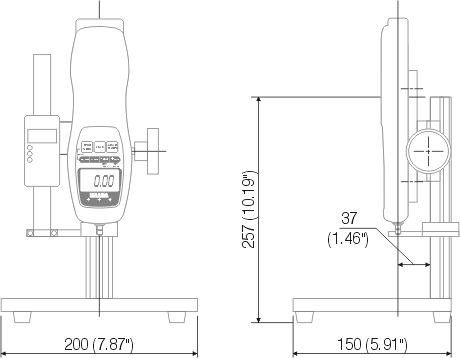

Imada SV-05 diagram
