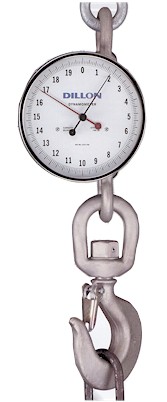

Dillon AP Crane Scales

View Specifications Chart View PDF brochure

Dillon AP Industrial Crane Scales We offer Discounts On All Dillon AP Crane Scales For the Best Price Please Call Us (800)832-0055 or Email Us FREE UPS Ground Shipping (48 US States Only) Model: Select 1000 x 5 lb - 2000 x 10 lb - 5000 x 20 lb - 8000 x 50 lb - 10000 x 50 lb - 15000 x 100 lb - 20000 x 100 lb - 500 x 2 kg - 1000 x 5 kg - 2000 x 10 kg - 5000 x 20 kg - 10000 x 50 kg - Free 2nd year Calibration with purchase of a Dillon AP Dynamometer

• Accuracy: to +/-0.5% of full scale
• Tare adjustment: up to 20% of full scale range
• Ultimate safety factor: 5:1 (4:1 for 20,000 lb, 50,000 lb, 10,000 kg and 20,000 kg)
• Dial diameter: 10"
• Scale length: (from inside of eye to inside of hook)
  • Low Range: 25-1/2"
  • Medium Range: 29-3/4"
  • High Range: 37-1/2"

Available in low, intermediate and high range models in either pound or kilogram models: 13 capacities from 500 to 50,000 pounds and 9 capacities from 200 to 20,000 kg.

Anti-parallax dial and pointer - easy to read even at an angle

Tare capability - tare loads up to 20% of caqpacity can be zeroed out with zero control

Dust protection - pinion gear, sector gear and shafts are mounted in precision aircraft bearings, permanently sealed against dust and dirt. Oiling is never required

Tough construction - mechanism case is a heavy aluminum allow casting, tough enough to resist even heavy blows

Ingenious design - utilizes a specially designed allow steel beam that translates force to pounds. Full scale reading results from beam deflection of only 0.026". Applied loads are indicated instantly.

Reduced wear - pinion and sector gears are cut from stainless steel and hardened aluminum. Use of these dissimilar materials greatly reduces friction and wear

Protective finish - scale cases are coated with a baked-on powder paint process making them resistant to chips, scratches, rust and corrosion

Maximum indicator - remains in position peak load point after load is removed from the scale

Storage boxes for Dillon AP series mechanical crane scales

We offer Discounts On All Dillon AP Crane Scales For the Best Price Please: Call Us (800)832-0055 or Email Us
	Part Number	Capacities & Dial Divisions (lb)	Price	Part Number	Capacities & Dial Divisions (kg)	Length (in inches)	Net/Gross Weight (in lbs)	Price
LOW	30008-0025	1000 x 5			500 x 2	25.5	28 / 62
	30008-0033	2000 x 10		30008-0116	1000 x 5	25.5	28 / 62
	-	-	-	30008-0124	2000 x 10	25.5	28 / 62
	30008-0058	5000 x 20		-	-	25.5	28 / 62	-
	30008-0074	8000 x 50		-	-	25.5	28 / 62	-
	30008-0082	10,000 x 50		30008-0140	5000 x 20	25.5	28 / 62
MED	30387-0026	20,000 x 100		30387-0034	10,000 x 50	29.75	48 / 83
HIGH	30361-0018 **	30,000 x 200	CALL	-	-	37.5	140 / 175	-
	30361-0034 **	50,000 x 200	CALL	30361-0059**	*20,000 x 100	37.5	140 / 175	CALL

***4:1 ultimate safety factor - all other models have 5:1 ultimate safety factor
