Detecto FHD-Series Wheelchair Scales / Bariatric Scales

detecto logo
Authorized Dealer

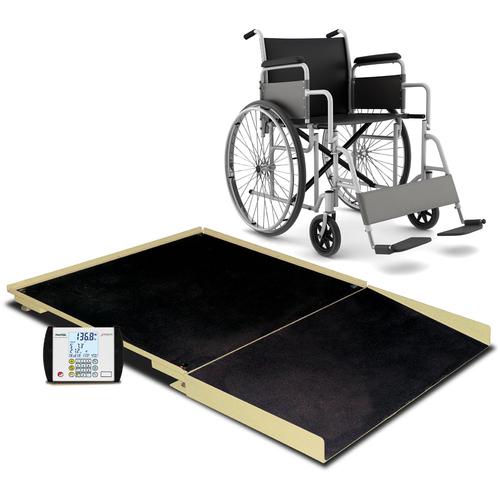

The large slip-resistant, low-profile platform of Detecto?s FHD scales accommodate walk-on patients, wheelchairs, straight-legged chairs, or walkers. These scales feature a high 1,000 lb / 450 kg capacity with your choice of 36 inch (91 cm) or 48 inch (122 cm) square platforms.
Detecto FHD-Series Wheelchair Scales / Bariatric Scales Specifications Chart


Detecto FHD-Series Wheelchair Scales / Bariatric Scales
(wheelchair not included)

The large slip-resistant, low-profile platform of Detecto?s FHD scales accommodate walk-on patients, wheelchairs, straight-legged chairs, or walkers. These scales feature a high 1,000 lb / 450 kg capacity with your choice of 36 inch (91 cm) or 48 inch (122 cm) square platforms. The weight indicator provides numeric keypad for entry of wheelchair tare weights, EMR/EHR ready output via serial, USB or optional Ethernet ports to printers or PCs (optional Wi-Fi also available). This scale can only be used for top of floor installations. Please consult factory for pit type installations. 28.5 inch (72 cm) long ramp and 15 ft (4.5 m) indicator cable included. AC adapter optional (listed under Options tab).

  • Includes NEW Detecto MV1 indicator (click here for specs)
  • 1000 lb/450 kg Capacity
  • 28.5 in/72 cm Access Ramp
  • 6 C Batteries (Not Included)
  • EMR/EHR Ready
  • Low-Profile Design
  • Output to Printer or PC
  • Wi-Fi and Ethernet Optional
Detecto FHD-Series Wheelchair Scales / Bariatric Scales

Model

Optional AC Adapter , Add
Optional P150 Mobile Tape Printer, Add
Optional P-220 Thermal Label Printer, Add
Detecto WinDDE Dynamic Data Exchange , Add
Detecto Welch Allyn Device, Add



Shipping Weight:
FHD-133II - 315 lbs
FHD-144II - 460 lbs

Other Wheelchair Scales

Compare Wheelchair Scales

DETECTO?s FHD series low-profile wheelchair scale models offer two platform sizes to accommodate wheelchairs of varying widths. Ranging from 36-in to 48-in wide platforms, patients in regular size to bariatric size wheelchairs are provided easy access. The 28.5-in-long ramp provides a smooth transition from the floor to the scale platform.

The durable scale provides a capacity of 1,000 lb/450 kg, allowing for measuring patients of almost any weight. The platform and ramp is covered with a black rubber mat designed to prevent slippage and ensuring safe weighing for non-ambulatory or standing patients.

DETECTO?s versatile MedVue weight indicator provides many benefits and options for medical professionals. This indicator offers you tare functionality and storage for wheelchair weights, measurement units switching (including metric lockout), BMI calculation, EMR/EHR readiness, and stores up to 200 transactions. Valuable options include Ethernet, WiFi, and Welch Allyn interface capabilities, permitting EMR/EHR information transmission to many important software platforms.

Model FHD-133II FHD-144II
Price FHD-133II

FHD-144II

Capacity 1000 lb x 0.2 lb
(450 kg x 0.1 kg)
Platform Size 36 x 36 in
(919 x 914 mm)
48 x 48 in
(1.21 x 1.21 m)
Ramp 28.5 in (72 cm)
One ramp included
Display 5 digit, seven segment, 7/8 inch (22.23 mm) high LCD weight digits
Cable Length 15 ft (4.5 m)
Color Blue with black mat and ramp
More Options

More Options

More Options

Shipping Weight 315 lb 460 lb



FHD-133-II Wheelchair Scale

Model FHD-133-II FHD-133-II-AC FHD-133-II-C FHD-133-II-C-AC
Price Detecto FHD-133-II

Detecto FHD-133-II-AC

Detecto FHD-133-II-C

Detecto FHD-133-II-C-AC

Capacity x Readability 1000 lb x 0.2 lb 1000 lb x 0.2 lb 1000 lb x 0.2 lb 1000 lb x 0.2 lb
450 kg x 0.1 kg 450 kg x 0.1 kg 450 kg x 0.1 kg 450 kg x 0.1 kg
Platform Size 36 x 36 in
91 cm x 91 cm
Power Optional model MV1PWR AC adapter or 6 AA batteries (not included AC adapter (included) or 6 C batteries (not included) Optional model MV1PWR AC adapter or 6 AA batteries (not included) AC adapter (included) or 6 C batteries (not included)
Indicator MedVue� Model MV1
Indicator Dimensions 9.8 in W x 6.8 in H x 1.8 in D
24.9 cm W x 17.2 cm H x 4.6 cm D
LCD Digits 0.9 in / 22 mm high LCD, 5 digit, 7 segment
Keypad Buttons ON/OFF, ZERO, UNITS, LOCK/RELEASE, NET/ GROSS, TARE, ID/HEIGHT, BMI, PRINT/ENTER, alphanumeric keys
Connectivity RS232 serial and USB RS232 serial and USB RS232 serial, USB, and WiFi/Bluetooth RS232 serial, USB, and WiFi/Bluetooth
Net Weight 225 lb/102 kg
Shipping Weight 315 lb/143 kg
Country of Origin USA
UPC Code 809161139709 809161318500 809161324501 809161324600



FHD-144-II Wheelchair Scale

Model FHD-144-II FHD-144-II-AC FHD-144-II-C FHD-144-II-C-AC
Price Detecto FHD-144-II

Detecto FHD-144-II-AC

Detecto FHD-144-II-C

Detecto FHD-144-II-C-AC

Capacity x Readability 1000 lb x 0.2 lb 1000 lb x 0.2 lb 1000 lb x 0.2 lb 1000 lb x 0.2 lb
450 kg x 0.1 kg 450 kg x 0.1 kg 450 kg x 0.1 kg 450 kg x 0.1 kg
Platform Size 48 x 48 in
122 cm x 122 cm
Power Optional model MV1PWR AC adapter or 6 AA batteries (not included AC adapter (included) or 6 C batteries (not included) Optional model MV1PWR AC adapter or 6 AA batteries (not included) AC adapter (included) or 6 C batteries (not included)
Indicator MedVue� Model MV1
Indicator Dimensions 9.8 in W x 6.8 in H x 1.8 in D
24.9 cm W x 17.2 cm H x 4.6 cm D
LCD Digits 0.9 in / 22 mm high LCD, 5 digit, 7 segment
Keypad Buttons ON/OFF, ZERO, UNITS, LOCK/RELEASE, NET/ GROSS, TARE, ID/HEIGHT, BMI, PRINT/ENTER, alphanumeric keys
Connectivity RS232 serial and USB RS232 serial and USB RS232 serial, USB, and WiFi/Bluetooth RS232 serial, USB, and WiFi/Bluetooth
Net Weight 322 lb/151 kg
Shipping Weight 460 lb/209 kg
Country of Origin USA
UPC Code 809161139808 809161318609 809161324709 809161324808




Detecto MV1 MedVue Medical Weight Analyzer Indicator

Detecto MV1 Med Vue Medical Weight Analyzer Indicator Detecto's MedVue� medical weight analyzer is utilized on select clinical scales. The MedVue� features a striking blue 3.5-in-wide by 3-in-high backlit LCD display screen with nearly 1-in-high weight digit readouts for easy visibility. The MedVues 350-degree swivel mounting bracket allows the display to be tilted and rotated into position wherever it is the most convenient for the medical professional and/or patient to view. A host of other benefits include 14-digit patient ID which may be entered via the alphanumeric keypad, 99 stored tare weights, 200 stored transactions, 1LOOK display, and four different languages available in set-up (English, Spanish, French, and German). The MedVue� offers a host of both wired and optional wireless connectivity for sending measurement data to

Versatile Connectivity - DETECTO's MedVue medical weight analyzer offers a host of different options, both wired and optional wireless, for DETECTO scales to connect with multiple devices for efficient EMR/EHR. Connect with:

  • Printers
  • PCs
  • Networks
  • Tablets
  • Bar Code Scanners
  • Even Mobile Phones

BENEFITS OF WI-FI CONNECTIVITY - DETECTOs MedVue offers optional Wi-Fi connectivity with up to 20 ft. range (varies depending upon environmental conditions). Wi-Fi offers a number of benefits over Bluetooth, including greater range and security.


Almost every MedVue port may be used simultaneously (with the exception of Ethernet and Wi-Fi connections). For instance, a printer could be connected to the serial port, PC connected to the USB port, while a tablet is connected via Wi-Fi all at the same time. DETECTOs model P50 printer offers plug-and-play compatibility with the MedVue

350-Degree Swivel Mounting Bracket - Enjoy freedom of movement wherever you need to position the display with the MedVues 350-degree tilt-and-swivel mounting bracket.

EASY SET-UP NAVIGATION - DETECTOs MedVue indicator features a tiered menu system with up/down navigation controls to quickly update any settings you wish to change, such as converting to kilograms-only weighing or lowering the backlight intensity to make the batteries last longer

MULTIPLE LANGUAGE SETTINGS - DETECTOs MedVue features user-prompting in four different languages:

  • English
  • Spanish
  • French
  • German

  • 14-Digit Patient ID
  • 350-Degree Swivel Mounting Bracket
  • 6 AA Batteries (not included)
  • 99 Stored Tare Weights
  • BMI Calculation
  • EMR/EHR Ready
  • Nearly 1-in-High Weight Readouts
  • NTEP Legal for Trade
  • RS232 Serial and USB Ports Standard
  • Sturdy Steel Construction
  • Wi-Fi and Ethernet Optional
