Chatillon DFE and E-DFE Series Digital Force Gauges

DFE and E-DFE Chatillon Force Gauge


View Specifications Cart

The Chatillon DFE series digital force gauge marks a new era in force measurement. This compact, easy to use force gauge is designed for economy applications without compromising functionality. The Chatillon DFE digital force gauge is ideal for both hand held and test stand applications. The DFE gauge is available in capacities from 2 pounds (10 N) to 500 pounds (2500 N). The DFE features an integral loadcell with a measurement accuracy of better than 0.25% full scale.

A large, easy to read, high resolution dot matrix LCD display supports a variety of standard gauge functions, including normal and peak readings, high / low limits, setpoints, pass / fail results, statistical results, loadcell actuation and direction. Loads are displayed in oz, g, lb, kg and N units. The display can be inverted and displayed results may be "hidden" from the operator.

The Chatillon DFE digital force gauge may be specified with or without RS232 serial communication. All DFE gauges come with a carrying case, adapter / charger, testing accessories and NIST Certificate of Calibration with data.

  • Two models and 7 capacities each
    • DFE Series (no outputs)
    • E-DFE Series (with digital and analog outputs)
  • Advanced Operating Modes
    • Normal
    • Peak tension and compression
    • Load limits
    • Pass-fail limits
  • Statistical Calculations
    • Mean with maximum and minimum values
    • Coefficient of variation with mean and standard deviation
    • Standard deviation with variance and mean
    • Percent differentiation
  • Integral Loadcells
    • Accuracy ±0.25% full scale
    • Mechanical overload protection to 150% full scale
  • Simple Operator Interface
    • High resolution display
    • Menus, prompts and function keys for easy use
  • Optional Outputs (standard on E-DFE models): RS-232 serial data, Mitutoyo Digimatic, ±2Vdc Analog
  • NIST Calibration with Data - available IEC/ISO17025 cert with uncertainty
  • 2 year warranty

Over 99% of items IN STOCK for Immediate Delivery! Lowest prices GUARANTEED!

Do More... Pay Less!

The new Chatillon DFS series force gauges deliver more features without compromising easy of use, accuracy and, very importantly, costs to you. You'll do more with a Chatillon DFS series gauge and you'll get the reliability and quality that you've come to expect from Chatillon force measurement instruments.

Easy to Read Display

A large, easy to read dot matrix display can display up to eight lines of information. The high resolution display features contrast adjustments and can be inverted when required. The display can even be "hidden" at the press of a button. A load bargraph indicated load direction, measured load and safe load and helps to prevent overloads. The integral loadcells feature mechanical overload protection of 150% full scale.

Single Touch Operation

The rubber keypad features dedicated and dynamic function keys. The function keys correspond to displayed options and guide the user during operation. A navigation pod lets you navigate through the menus and to scroll and change values quickly. The innovative i key can be used to display critical information on the gauge such as gauge capacity and resolution, battery life, loadcell overload history, even service information including last calibration date or the location of service centers.

Data Outputs and Personal Computer Integration

The DFS force gauge features RS-232 and Mitutoyo Digimatic digital outputs. the gauge also features a ±2Vdc analog output. Measured values may be transmitted to an external device using a manual command at the gauge, or a measured value may be transmitted based on an an externally driven command, e.g. from a personal computer or other serially interfaced device.

Chatillon DFE and E-DFE Series Digital Force Gauge

FREE UPS Next Day Air Shipping!

Options:
SPK-FMG-008B Chisel Point Adapter 500 lbf, Add $26.00
ML3868 Swivel Hook, 500 lbf , Add $59.00
SPK-FMG-009A Point Adapter 100 lbf , Add $18.00
SPK-DF-HANDLE Handle Assembly , Add $65.00
SPK-FMG-009B Point Adapter 500 lbf, Add $26.00
SPK-FMG-010A Notch Adapter 100 lbf , Add $18.00
ML3867 Swivel Hook, 20 lbf, Add $21.00
SPK-FMG-010B Notch Adapter 500 lbf, Add $25.00
P-10020 #10-32 to 5/16-18 Female to Male Thread Adapter, Add $22.00
ML3850 Swivel Hook, 100 lbf , Add $28.00
NC002500 Hook with Latch 500 lbf , Add $97.85
SPK-FMG-013A Extension Rod, Low Capacity (#10-32), Add $26.00
SPK-FMG-008A Chisel Point Adapter 100 lbf , Add $18.00
SPK-FMG-013B Extension Rod, 6-inch 500 lbf Thread 5/16-18F, Add $37.00
SPK-MT-0001 Adapter, Add $64.00
SPK-MT-0004 Adapter, Add $138.70
SPK-DF-LTCM LTCM-100 Series Adapter, Add $123.00
NC002582 Adapter, Add $103.55
SPK-FM200-019 Adapter, Add $70.12
NC000850-2 RS232 Cable (10 ft, 3m), Add $156.43
NC000654 RS232 9-Pin output to a 10-Pin Mitutoyo Input - 5ft, Add $134.85
ENC0157 RS232 9-Pin output to a 10-Pin Mitutoyo Input - 6ft, Add$91.70
NC000647 DF Series force gauge to a TCD200 Digital Tester Cable 6ft - 6ft, Add $210.37
ENC-0125 Interface Cable, Add $152.95
SPK-DF-USB Gauge Adaptor, Add$124.06
UE220V European Adapter, Add $30.00
UK220V UK Adapter, Add $30.00
NexyGen DF Software, Add $327.75



Shipping Weight: 6 lbs.

Model DFE Series Without Outputs
ounce gram pound kilogram Newton Price
DFE-002 32 x 0.04 1000 x 1 2 x 0.002 1 x 0.001 10 x 0.01 $995.00
DFE-010 160 x 0.2 5000 x 5 10 x 0.01 5 x 0.005 50 x 0.05 $995.00
DFE-025 400 x 0.5 10000 x 10 25 x 0.02 10 x 0.01 100 x 0.1 $995.00
DFE-050 800 x 1 25000 x 20 50 x 0.05 25 x 0.02 250 x 0.2 $995.00
DFE-100 1600 x.2 50000 x 50 100 x 0.1 50 x 0.05 500 x 0.5 $995.00
DFE-200 3200 x 4 - 200 x 0.2 100 x 0.1 1000 x 1 $995.00
DFE-500 8000 x 10 - 500 x 0.5 250 x 0.2 2500 x 2 $995.00
Model E-DFE Series with RS232, Mitutoyo and Analog Outputs
E-DFE-002 32 x 0.04 1000 x 1 2 x 0.002 1 x 0.001 10 x 0.01 $1095.00
E-DFE-010 160 x 0.2 5000 x 5 10 x 0.01 5 x 0.005 50 x 0.05 $1095.00
E-DFE-025 400 x 0.5 10000 x 10 25 x 0.02 10 x 0.01 100 x 0.1 $1095.00
E-DFE-050 800 x 1 25000 x 20 50 x 0.05 25 x 0.02 250 x 0.2 $1095.00
E-DFE-100 1600 x.2 50000 x 50 100 x 0.1 50 x 0.05 500 x 0.5 $1095.00
E-DFE-200 3200 x 4 - 200 x 0.2 100 x 0.1 1000 x 1 $1095.00
E-DFE-500 8000 x 10 - 500 x 0.5 250 x 0.2 2500 x 2 $1095.00

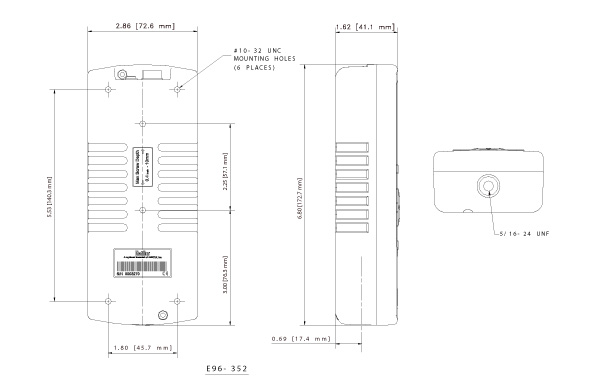

Specifications

  • Accuracy: ±0.25% of full scale ± LSC
  • Certification: calibration with NIST data, IEC/ISO17025 optional
  • Data Sampling Rate: 5000 Hz
  • Peak Capture Rate: 5000 Hz
  • Display Update Rate: 10 Hz
  • Tare Capacity: 10% full scale
  • Overload Protection: 150% full scale
  • Display Characteristics: high resolution, dot matrix LCD, 8 lines, 40 characters, adjustable contrast, invert and "hide" capability
  • Automatic Shut Down: configurable time. May be disabled.
  • Data Storage: 10 results, optional NEXYGEN software for unlimited storage and automated testing and analysis.
  • Test Stand Control: Compatible with Chatillon TCD series test stands
  • Outputs (E-DFE models) : RS-232, Mitutoyo (Digimatic) and ±2Vdc analog
  • Power: Battery or direct AC operation. Universal Power: 120V / 230V, Rechargeable nickel metal hydride (supplied)
  • Battery Life: 30 hours, continuous use. Gauge may be operated with direct AC power source
  • Instrument Weight: 1.5 lbs
  • Operating Temperature: 40 to 100 F (4 to 38 C)
  • Warranty: 2 years

Comprehensive Results

The rubber keypad features dedicated and dynamic function keys. The function keys correspond to displayed options and guide the user during operation. A navigation pod lets you navigate through the menus and to scroll and change values quickly. The innovative "i" key can be used to display critical information on the gauge such as gauge capacity and resolution, battery life, loadcell overload history, even service information including last calibration date, or the location of service centers.

Dependable Measurements

The DFS series force gauge features an internal loadcell sensor that delivers repeatable, accurate results. The innovative load bargraph shows dynamic load, direction of load and warns you of pending overload conditions.

Calibrate and Verify Status

The DFE-series force gauge incorporates flash memory and hosts a set of self-diagnostic functions for monitoring the display, keypad and electronics. Using the "i" key, you have immediate access to battery conditions, including estimated battery life remaining. You can also view loadcell status, including the number of overloads that have been applied to the gauge. Zero offset verification is standard and a step by step calibration procedure is built into the gauge, allowing you to calibrate your DFS gauge with certified standards.

...You Get More from a Chatillon Gauge

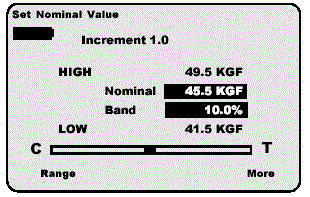

High and Low Load or Pass Fail Limits

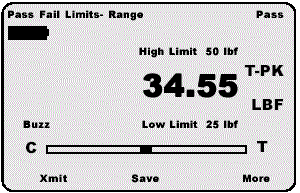

The DFE digital force gauge may be configured with High and Low Load Limits or Pass-Fail Limits. Load limits allow you to establish setpoints for your testing. If the gauge exceeds a setpoint value, the gauge can provide a visual and audible alarm. You can set up a pass-fail limit based on a limit range or on a nominal value with a percentage bandwidth. Based on your setup, the gauge will provide you with a Pass-Fail indication.

High and Low Load or Pass Fail Limits

Advanced Testing With Statistics

The DFE digital force gauge operates in Normal and Peak modes. When peak operation is required, the display will indicate the peak reading and direction. Load values may be displayed in oz, g, kg, lb or N values.

Your DFE force gauge can store up to 10 test results in memory. Results may be viewed, cleared and used to calculate statistics. The gauge will display the number of results stored and will alert you when the memory is full.

  • Calculate Mean and also show you the MAX and MIN values for your calculation
  • Coefficient of Variation is calculated and displayed with the Mean and Standard Deviation value
  • Standard Deviation is calculated and displayed with the Mean and the Variance value. Total Population and Sample (n-1) methods are supported
  • Calculate and display percentage difference between consecutive test results.

Statistical Results



Simplified Setup

Menus and intelligent prompts make gauge setup fast and easy. Gauge options are presented in "List Format". Using the navigation pod and function keys, you simply select the functions and parameters required. The gauge will guide you through the setup process. Default settings are provided and a "Quick Reset" allows you to re-establish defaults with a single key press. If your gauge features digital outputs, you can print your gauge setup parameters for record archiving or use it as a setup template for other DFE force gauges in your plant.

Simplified Setup

Personal Computer Integration

The E-DFE gauge features digital and analog outputs. RS-232 for integration with Chatillon NEXYGEN software and a Mitutoyo Digimatic output is available. The gauge will also supply an analog output of ±2Vdc. Use Nexygen software for data acquisition, graphical load v. time results, analysis and reporting. With Nexygen software, store an unlimited number of results for analysis.

DFE Chatillon Force Gauge

Self Diagnostics

The DFE digital force gauge incorporates flash memory and hosts a set of self-diagnostic functions for monitoring the display, keypad and electronics. Using the "i" key, you have immediate access to battery conditions, including estimated battery life remaining. You can also view loadcell status, including the number of overloads that have been applied to the gauge. Zero offset verification is standard and a step by step calibration procedure is built in, allowing you to calibrate your DFE gauge with certified standards.
