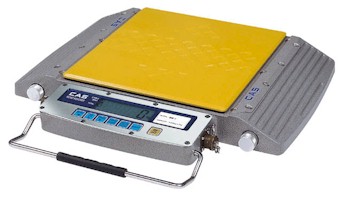

CAS RWS Wheel Weighing Digital Scale
CAS RWL Wheel Weighing Digital Scale |
For Dummy Plates, phone 1-800-832-0055 |
CAS RW Wheel Weighing Scales are self-contained, high-capacity digital wheel load scales designed to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment. The 12 inch wide platform accomodates single tire (outside tire in dual wheel configuration) while the RW-L large 24 inch platform accomodates dual wheels and oversized tires.
- Designed for mobile weight inspection
- Heavy duty cast aluminum construction
- 1 inch LCD illuminated backlight display
- Used for cars, trucks, and custom applications
- Battery operated with AC adapter/charger
- Single and double width available
- Scale are linkable for multi-axle weighing (up to 6 scales)
- kg/lb Switchable
- Displays Individual or Total Weight
- Advanced Digital Filtering to Compensate
for Vibration
| Model |
RW-05S |
RW-05S-N |
RW-10S |
RW-10S-N |
RW-05L |
RW-05L-N |
RW-10L |
RW-10L-N |
| Price |
$1356
 |
$1356
|
$1356
|
$1356
|
$1756
|
$1756
|
$1756
|
$1756
|
Capacity
Readability |
10000 X 5 lb
5000 X 2 kg |
20000 X 10 lb
10000 X 5 kg |
10000 X 5 lb
5000 X 2 kg |
20000 X 10 lb
10000 X 5 kg |
| Legal for Trade |
- |
YES |
- |
YES |
- |
YES |
- |
YES |
| NTEP # |
- |
03-047PA1 |
- |
03-047PA1 |
- |
03-047PA1 |
-
| 03-047PA1 |
| Display |
5 digit LCD display
1 inch (25 mm) high |
| Accuracy |
1% |
| Safe Overload |
150% |
| Operating Time |
20 hours
(8 hour charge time) |
| Operating Temperature |
-10 to +40 C |
| Power Source |
1.5V AA size 12EA
DC7,2V 2.6Ah battery
(AC 110V/220V charger) |
| Weigh Pad Dimensions |
12.2 x 13.4 inches |
24.6 x 13.4 inches |
| Overall Size |
18 x 21.1 x 2.4 inches |
28.3 x 22.3 x 2.4 inches |
Display and Keyboards:
|
