Rice Lake Roughdeck HE Hostile Environment Floor Scales |
 |
| The Toughest, Most Accurate Floor Scale Available. The RoughDeck HE is a hostile environment, stainless steel floor scale designed specifically for corrosion resistance and long life in demanding washdown applications. Design features include a six-inch, 304 stainless steel channel frame and smooth top plate.
|
| Rice Lake Scales > Industrial Scales > Floor Scales |
|

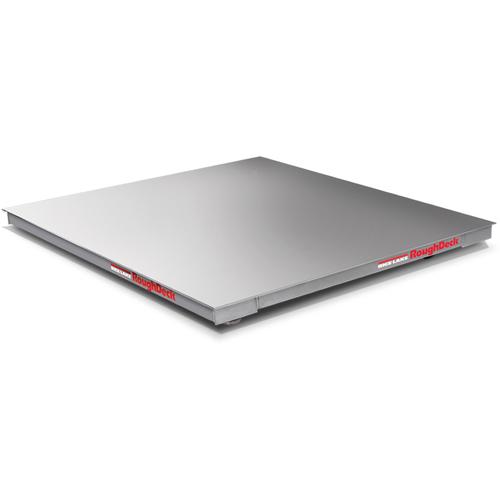

The Toughest, Most Accurate Floor Scale Available. The RoughDeck HE is a hostile environment, stainless steel floor scale designed specifically for corrosion resistance and long life in demanding washdown applications. Design features include a six-inch, 304 stainless steel channel frame and smooth top plate. The RoughDeck HE comes standard with four stainless steel, IP67 welded-seal, shear beam load cells, four stainless steel support feet, a stainless steel NEMA Type 4X TuffSeal summing junction box and EL147HE hostile environment load cell cable.
The stainless steel channel frame provides added protection by enclosing load cell cable and load cells, yet provides easy access for installation and service. The NEMA Type 4X summing TuffSeal junction box can be remotely mounted up to ten feet from the scale, keeping sensitive electronic connections away from moisture and chemicals.
All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.
- Rugged washdown design
- 304 stainless steel construction
- Rigid 304 stainless steel channel frame
- 4 stainless steel, welded-seal IP67, shear-beam load cells
- 20 ft of SURVIVOr EL147HE hostile environment load cell cable
- Remote TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card for remote mounting
- Load cells protected on all four sides
- Smooth stainless steel deck
- 4 stainless steel, welded-seal IP67, shear-beam load cells
|
| Model |
HE-25X25-2K |
HE-3X3-2K |
HE-4X4-5K |
HE-4X4-10K |
HE-4X5-5K |
HE-4X5-10K |
HE-5X5-5K |
HE-5X5-10K |
HE-5X7-5K |
HE-5X7-10K |
| 18680 |
18681 |
18682 |
18683 |
18684 |
18685 |
18688 |
18689 |
18692 |
18693 |
$2,687.30
|
$3,053.05
|
$4,265.80
|
$5,730.40
|
$4,772.80
|
$6,653.80
|
$6,061.00
|
$7,717.80
|
$7,945.80
|
$10,092.80
|
| Size |
2.5 ft x 2.5 ft x 3.5 in |
3 ft x 3 ft x 3.5 in |
4 ft x 4 ft x 3.5 in |
4 ft x 4 ft x 3.5 in |
4 ft x 5 ft x 3.5 in |
4 ft x 5 ft x 3.5 in |
5 ft x 5 ft x 3.5 in |
5 ft x 5 ft x 3.5 in |
5 ft x 7 ft x 3.5 in |
5 ft x 7 ft x 3.5 in |
| Capacity x Readability |
2000 x 0.5 lb
| 2000 x 0.5 lb
| 5000 x 1 lb
| 10000 x 2 lb
| 5000 x 1 lb
| 10000 x 2 lb
| 5000 x 1 lb
| 10000 x 2 lb
| 5000 x 1 lb
| 10000 x 2 lb
|
| 1000 x 0.2 kg |
1000 x 0.2 kg |
2500 x 0.5 kg
| 5000 x 1 kg
| 2500 x 0.5 kg
| 5000 x 1 kg
| 2500 x 0.5 kg
| 5000 x 1 kg
| 2500 x 0.5 kg
| 5000 x 1 kg
|
| Legal For Trade |
NTEP CC 92-001, Class III 5,000d |
| End Load Capacity |
100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb |
| Junction Box |
Remote TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card for remote mounting |
| Load cells |
protected on all four sides
Four stainless steel, welded-seal IP67, shear-beam |
| Construction |
304 stainless steel |
| Cable |
20ft SURVIVOr EL147HE hostile environment load cell cable |
| Warranty |
RoughDeck SS weldment five years, load cells two years, all other components one year |
| Approvals |
NTEP CC 92-001, Class III 5,000 d
FM Approved |
|
|
