The world?s toughest weighing jobs demand a scale like no other. Rice Lake?s RoughDeck CS was born for the unique task of weighing dense industrial materials to Legal for Trade accuracy. For steel coils, castings, cable spools or more, see why RoughDeck CS is the first and only scale investment you?ll ever make
The world?s toughest weighing jobs demand a scale like no other. Rice Lake?s RoughDeck CS was born for the unique task of weighing dense industrial materials to Legal for Trade accuracy. For steel coils, castings, cable spools or more, see why RoughDeck CS is the first and only scale investment you?ll ever make.
Off the shelf, or made to order
Custom sizes and capacities
Rail and track versions custom built to your specifications
Above ground or pit mounting
Specialty coil cradles and fixtures
Steel handling is the ultimate test for industrial equipment. The RoughDeck CS?s tightly spaced steel I-beams, half-inch thick top plate, and the patented G-force? self-checking mounting system make it the most solidly constructed scale on the market. And when it comes to extreme conditions, the RoughDeck CS takes a punch and comes back for more, delivering accurate results, day after day. Rice Lake?s RoughDeck CS is Legal for Trade in capacities up to 100,000 pounds. Choose a standard platform size or let Rice Lake help design a RoughDeck CS to your specifications.
Capacities: 40,000 lb to 80,000 lb, consult factory for custom capacities
Sizes: 5 ft x 5 ft - 6 ft x 6 ft, consult factory for custom sizes
Height: 11 in
Deck thickness: 1/2 in smooth top plate
JB4SS Tuffseal® signal trim junction box
MVS self-checking mounting system, top access to load cells
Black epoxy paint
20 ft SURVIVOr EL147HE hostile environment load cell cable

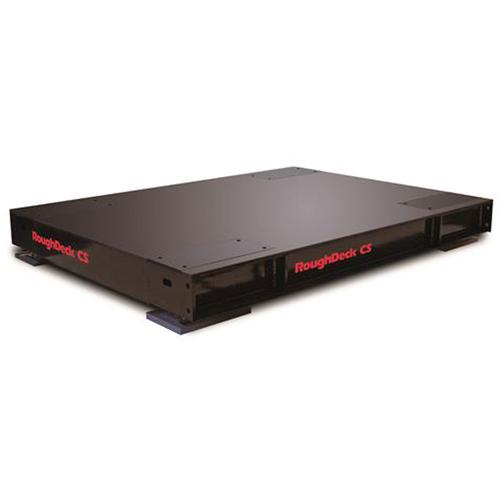

The NTEP Certified RoughDeck® CS Coil Scale
Pack all the strength and substance of a SURVIVOr truck scale into one tight little package and what do you get? The RoughDeck CS. Tougher than a truck scale, and made by Rice Lake for the challenge of weighing massive steel coils and other dense material, to Legal for Trade accuracy
Steel handling is the ultimate test for industrial equipment. The RoughDeck CS?s tightly spaced steel I-beams, halfinch thick top plate, and the patented G-force self-checking mounting system make it the most solidly constructed scale on the market. And when it comes to extreme conditions, the RoughDeck CS takes a punch and comes back for more, delivering accurate results, day after day.
Rice Lake?s RoughDeck CS is Legal for Trade in capacities up to 100,000 pounds. Choose a standard platform size or let Rice Lake help design a RoughDeck CS to your specifications
Specialty Options for Steel Handling
Get the most from your RoughDeck CS Coil Scale with options and accessories like indicators and remote displays. Or customize your scale with coil cradles and v-tops to optimize your handling needs. The RoughDeck CS can be built to fit existing pit frames, or used in above ground applications.
Standard Features
NTEP approved for scales sized 4ft x 6ft to 10ft x 20ft, capacities 25,000lb to 100,000lb
Low profile, yet heavy duty
Smooth top plate
JB4SS Tuffseal® signal trim junction box conveniently tucked away and protected in one of the load cell pockets
MVS self-checking mounting system
Ease of installation and service with top access load cell pockets
Black epoxy paint
20ft Survivor EL147HE hostile environment load cell cable for connecting to an indicator
Model
CS-5x5-40K
CS-5x5-60K
CS-5x5-80K
CS-6x6-40K
CS-6x6-60K
CS-6x6-80K
107493
107494
107495
107496
107497
107498
$11,970.00
$11,970.00
$11,970.00
$13,566.00
$13,566.00
$13,566.00
Size
5 ft x 5 ft x 11 in
5 ft x 5 ft x 11 in
5 ft x 5 ft x 11 in
6 ft x 6 ft x 11 in
6 ft x 6 ft x 11 in
6 ft x 6 ft x 11 in
Capacity x Readability
40000 x 8 lb 20000 x 4 kg
60000 x 12 lb 30000 x 6 kg
80000 x 16 lb 40000 x 8 kg
40000 x 8 lb 20000 x 4 kg
60000 x 12 lb 30000 x 6 kg
80000 x 16 lb 40000 x 8 kg
Legal For Trade
NTEP CC 11-068, Class III, 5,000d
Deck thickness
1/2in smooth top plate
Junction Box
JB4SS Tuffseal® signal trim
Access
MVS self-checking mounting system, top access to load cells
