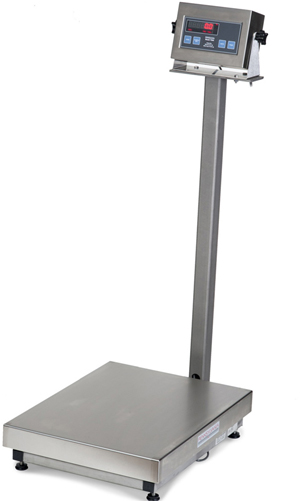

Pennsylvania Scale 6400 Series Heavy Duty - Mild and Stainless Steel Bases

Manufacturers

Pennsylvania Scale 6400 Series Heavy Duty - Mild and Stainless Steel Bases	Authorized Dealer
Versatile, Rugged, Flexible, Accurate. With its rugged, heavy duty design and impressive 1 part in 5000 accuracy, the 6400 Series is perfect for an incredible number of tough industrial uses. For loads up to 1000 lbs. you won’t find a better quality, more durable scale anywhere.

Industrial Scale

Pennsylvania Scale 7000 Legal for Trade Heavy Duty Shipping Scales

Base Only Indicator old Separately

Have Questions?

email Us

Our Staff will be glad to help

FM/IS Configurations are Available
Please Contact Us for Details ansd Quotation


Legal For Trade (Selected Models Only)	Canada Measurement (Selected Models Only)

12 x 12 Inch Specifications Chart

18 x 18 Inch Specifications Chart

18 x 24 Inch Specifications Chart

24 x 24 Inch Specifications Chart

24 x 30 Inch Specifications Chart

Versatile, Rugged, Flexible, Accurate. With its rugged, heavy duty design and impressive 1 part in 5000 accuracy, the 6400 Series is perfect for an incredible number of tough industrial uses. For loads up to 1000 lbs. you won’t find a better quality, more durable scale anywhere.

Sustained Accuracy for rugged industrial applications

Rugged, heavy duty design for rough industrial use
Capacities of 100, 250, 500 or 1,000 lbs.
Available in custom sizes at standard pricing
5" normal operating height
Full support for legacy products
Positive overload protection on all corners
Full frame design for accuracy and long life
FREE factory matching to any digital indicator
Adjustable leveling feet
1 part in 5,000 accuracy-ideal for parts counting
Fast lead times for standard sizes
Wide range of customizable features and accessories
Five-year limited warranty

Applications

Shipping, manifest systems
In-line weighing or check weighing
Bench or floor counting and weighing
Food or chemical processing
In-motion weighing systems
Portable weighing station
Drum, keg, or barrel weighing
General purpose weighing

Technical Specifications

Load Cell Specifications

Tedea-Huntleigh model 1260 or equivalent
Drive Voltage: 15vDC maximum
Nonlinearity: 0.01% of rated output
Hysteresis: 0.02% of rated output

Options

Stainless steel platform cover in place of powder coated steel cover

Columns

Base stands and tables

Mobility kit

Extended load cell cable

Custom engineering for unique applications

Approvals

NTEP NTEP #COC 90-161A2
Canadian Weights & Measures AM-4714 Rev. 4
UL Listed

Warranty The parts and components of these Pennsylvania Scale Company products are warranted for five years from the date of retail delivery against defects in materials and workmanship, subject to the terms and conditions of our standard warranty.

Shipping Weight

12 x 12" models 55 lbs.
18 x 18" models 65 lbs.
18 x 24" models 75 lbs.
24 x 24" models 85 lbs.
For shipping weights of other models please call us.

Other Options
	Pennsylvania Scale 56733 CASTER WHEEL KIT, 2 each locking + swivel; mounts to any MS OR SS 6400 base in place of std leveling feet, add $112.50
	Pennsylvania Scale 56731-1 SCALE SHELF: Mounts to any column flange, fits all 7X00 bench scales,0.25 inch LIP – ideal for dual base counting systems, add $90.00
	Pennsylvania Scale CALCERT1 Statement of Accuracy Certificate Must be Ordered with Scale, add $20.00
	Pennsylvania Scale CALCERT2 NIST Traceable Calibration Certificate - Must be Ordered with Scale, add $80.75

Pennsylvania Scale 6400

Bench Scale Base

Select Indicator (Must be added with scale)
	Pennsylvania Scale 7400EXP Legal for Trade Indicator , Add $404.25
	Pennsylvania Scale 7500EXP Legal for Trade Indicator , Add $404.25
	Pennsylvania Scale 7600EXP Legal for Trade Indicator , Add $423.50
	Pennsylvania Scale 7400+ Series Weighing & Batching Indicator , Add $499.00
	Pennsylvania Scale 7500+ Series Universal Weighing & Counting Indicato , Add $479.00
	Pennsylvania Scale7600+ Series Full Keyboard Universal Weighing & Counting Indicator , Add $564.00
	Pennsylvania Scale 7600E Series Truck Weighing & Batching Indicator , Add $579.00

38 inch Columns
	Pennsylvania Scale 56727-3 38 in MS COLUMN, mounts to 18 X 18 in SIZE ONLY Top Flange fits all indicators in 7X00 series + shelf below, add $225.00
	Pennsylvania Scale 56727-1 38 in MS COLUMN, mounts to 18 X 24 in or 24 x 24 in Top Flange fits all indicators in 7X00 series + shelf below, add $225.00
	Pennsylvania Scale 56727-4 38 in SS COLUMN, mounts to 18 X 18 in SIZE ONLY Top Flange fits all indicators in 7X00 series + shelf below, add $292.50
	Pennsylvania Scale 56727-2 38 SS COLUMN, mounts to 18 X 24 in and 24 X 24 in SIZES Top Flange fits all indicators in 7X00 series + shelf below, add $355.50
	Pennsylvania Scale 56728-1 38 in MS Floor Column Top Flange fits all indicators in 7X00 series + shelf below, add $225.00

Roller Conveyor Option Must Order With Scale
	Pennsylvania Scale M6400-1818-RT3 Roller Conveyor Option for M6400 Bases 18 x 18 inch 1.25 inch Rollers with 3 inch Spacing- Must order with Scale, add $382.50
	Pennsylvania Scale M6400-1818-RT1 Roller Conveyor Option for M6400 Bases 18 x 18 inch 1.25 inch Rollers with 1.5 inch Spacing- Must order with Scale, add $405.00
	Pennsylvania Scale M6400-2424-RT3 Roller Conveyor Option for M6400 Bases 24 x 24 inch 1.25 inch Rollers with 3 inch Spacing- Must order with Scale, add $382.50
	Pennsylvania Scale M6400-2424-RT3 Roller Conveyor Option for M6400 Bases 24 x 24 inch 1.25 inch Rollers with 1.5 inch Spacing- Must order with Scale, add $405.00

Ball Tops Must Order With Scale
	Pennsylvania Scale 56750-3 Ball top transfer plate for M6400 Bases 18 x 18 inch - 25 x 1.5inch balls with 4.5 inch center to center spacing.- Must order with Scale, add $517.50
	Pennsylvania Scale 56750-1 Ball top transfer plate For M6400 Bases 18 x 24 inch - 24 x 1.5inch balls with 4.5 inch center to center spacing.- Must order with Scale, add $517.50
	Pennsylvania Scale 56750-2 Ball top transfer plate for M6400 Bases 24 x 24 inch - 33 x 1.5inch balls with 4.5 inch center to center spacing.- Must order with Scale, add $535.50
	Pennsylvania Scale 56750-7 Ball top transfer plate for MS6400 24 x 30 inch - 38 x 1.5inch balls with 4.5 inch center to center spacing.- Must order with Scale, add $585.00

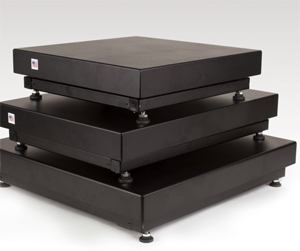

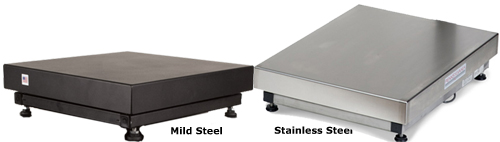

12 x 12 inch and 18 x 18 inch 6400 Mild & Stainless Steel Heavy Duty Bases

Mild Steel Models	M6400-1212-100	M6400-1212-250	M6400-1212-500	M6400-1212-1K	M6400-100-18x18 M6400-1818-100	M6400-250-18x18 M6400-1818-250	M6400-500-18x18 M6400-1818-500	M6400-1000-18x18 M6400-1818-1K
Price	$670.50	$670.50	$670.50	$670.50	$580.00	$580.00	$580.00	$519.20
Stainless Steel Models	-	-	-	-	SS6400-100-18x18 SS6400-1818-100	SS6400-250-18x18 SS6400-1818-250	SS6400-500-18x18 SS6400-1818-500	SS6400-1000-18x18 SS6400-1818-1K
Price	-	-	-	-	$1,036.00	$1,036.00	$1,036.00	$1,036.00
Capacity x Readability	100 x 0.02 lb 45.36 x 0.01 kg	250 x 0.05 lb 115 x 0.02 kg	500 x 0.1 lb 250 x 0.05 kg	1000 x 0.2 lb 500 x 0.1 kg	100 x 0.02 lb 45.36 x 0.01 kg	250 x 0.05 lb 115 x 0.02 kg	500 x 0.1 lb 250 x 0.05 kg	1000 x 0.2 lb 500 x 0.1 kg
Platform size	12" x 12"				18" x 18"
Legal For Trade	YES	YES	YES	YES	YES	YES	YES	YES
Legal For Trade	NTEP #COC 90-161A2 Measurement Canada COC AM-4714 Rev. 4 NTEP 5000 divisions, Canadian Weights & Measures 5000 divisions
Load Cell Specifications	Tedea-Huntleigh Model 1260 or equivalent Drive Voltage: 15 v maximum Nonlinearity: 0.01% of rated output Hysteresis: 0.02% of rated output
Compatible With	7400EXP, 7500EXP, 7600EXP, 7400+, 7600E, 7500+, 7600+ Indicators
SS Models	-				IP68 washdown (SS Models only)
Warranty	4 years
Height	5 Inch
Shipping Weight	70 lb

18 x 24 inch 6400 Mild & Stainless Steel Heavy Duty Bases

Models	M6400-100-18x24	M6400-250-18x24	M6400-500-18x24	M6400-1000-18x24	SS6400-100-18x24	SS6400-250-18x24	SS6400-500-18x24	SS6400-1000-18x24
Price	$660.00	$660.00	$660.00	$660.00	$1,116.00	$1,165.00	$1,116.00	$1,116.00
Capacity x Readability	100 x 0.02 lb 45.36 x 0.01 kg	250 x 0.05 lb 115 x 0.02 kg	500 x 0.1 lb 250 x 0.05 kg	1000 x 0.2 lb 500 x 0.1 kg	100 x 0.02 lb 45.36 x 0.01 kg	250 x 0.05 lb 115 x 0.02 kg	500 x 0.1 lb 250 x 0.05 kg	1000 x 0.2 lb 500 x 0.1 kg
Platform size	18" x 24"
Construction	Mild Steel				Stainless Steel
Legal For Trade	NO	YES	YES	YES	NO	YES	YES	YES
Legal For Trade	NTEP #COC 90-161A2 Measurement Canada COC AM-4714 Rev. 4 NTEP 5000 divisions, Canadian Weights & Measures 5000 divisions
Load Cell Specifications	Tedea-Huntleigh Model 1260 or equivalent Drive Voltage: 15 v maximum Nonlinearity: 0.01% of rated output Hysteresis: 0.02% of rated output
Compatible With	7400EXP, 7500EXP, 7600EXP, 7400+, 7600E, 7500+, 7600+ Indicators
Warranty	5 years
Height	5 Inch
Shipping Weight	75 lb

24 x 24 inch 6400 Mild & Stainless Steel Heavy Duty Bases

Models	M6400-100-24x24	M6400-250-24x24	M6400-500-24x24	M6400-1000-24x24	SS6400-100-24x24	SS6400-250-24x24	SS6400-500-24x24	SS6400-1000-24x24
Price	$740.00	$740.00	$740.00	$740.00	$1,196.00	$1,196.00	$1,196.00	$1,196.00
Capacity x Readability	100 x 0.02 lb 45.36 x 0.01 kg	250 x 0.05 lb 115 x 0.02 kg	500 x 0.1 lb 250 x 0.05 kg	1000 x 0.2 lb 500 x 0.1 kg	100 x 0.02 lb 45.36 x 0.01 kg	250 x 0.05 lb 115 x 0.02 kg	500 x 0.1 lb 250 x 0.05 kg	1000 x 0.2 lb 500 x 0.1 kg
Platform size	24" x 24"
Construction	Mild Steel				Stainless Steel
Legal For Trade	NO	YES	YES	YES	NO	YES	YES	YES
Legal For Trade	NTEP 5000 divisions, Canadian Weights & Measures 5000 divisions
Load Cell Specifications	Tedea-Huntleigh Model 1260 or equivalent Drive Voltage: 15 v maximum Nonlinearity: 0.01% of rated output Hysteresis: 0.02% of rated output
Compatible With	7400EXP, 7500EXP, 7600EXP, 7400+, 7600E, 7500+, 7600+ Indicators
Warranty	5 years
Height	5 Inch
Shipping Weight	85 lb

24 x 30 inch 6400 Mild Steel Heavy Duty Bases

Models	M6400-500-24x24	M6400-1000-24x30
Price	$900.00	$900.00
Capacity x Readability	500 x 0.1 lb 250 x 0.05 kg	1000 x 0.2 lb 500 x 0.1 kg
Platform size	24" x 30"
Construction	Mild Steel
Legal For Trade	NO	NO
Load Cell Specifications	Tedea-Huntleigh Model 1260 or equivalent Drive Voltage: 15 v maximum Nonlinearity: 0.01% of rated output Hysteresis: 0.02% of rated output
Compatible With	7400EXP, 7500EXP, 7600EXP, 7400+, 7600E, 7500+, 7600+ Indicators
Warranty	5 years
Height	5 Inch
Shipping Weight	100 lb
