Ohaus 3000/5000/7000/CD Series Indicators
Ohaus Scales >> Industrial
Scales
|
|
| Ohaus 3000 Series Indicator |
|
|
|
|
$264.80
T31P |
$433.60
T32XW |
$230.40
T32MC |
$230.40
T32ME |
The OHAUS 3000 series of economy indicators is ideal for general weighing and simple counting applications in production, packaging, warehouse, inventory, shipping and receiving areas. Ideal for bench and floor scale applications, the 3000 series offers either a dry-use, ABS plastic indicator housing or an IP66/NEMA4X water resistant stainless steel housing. Both indicators feature large, bright backlit displays, raised tactile keys and easy configurability. The 3000 series is the solution to your weighing applications that require dependability within an affordable budget.
|
|
Designed With Affordability In Mind For Industrial Applications!
Now available in four models, the OHAUS 3000 Series of Economical Indicators offer software modes for common industrial weighing applications
- The T31P combines a high-impact ABS housing with a large backlit LCD display, bi-directional RS232 and 120-hour internal rechargeable battery. The T31P features software for weighing and simple parts counting.
- The T32XW replaces the T31XW with the addition of an improved NEMA4X/IP65 washdown all stainless steel housing and a 58-hour internal rechargeable battery. The T32XW also features software for weighing and simple parts counting. Stainless steel mounting bracket included.
- The new T32MC and T32ME versions are designed for floor scale and other installations where internal battery power are not required. Both feature a painted steel housing with high-impact ABS faceplate, bi-directional RS232 and software for weighing, simple parts counting, basic checkweighing, display hold and accumulation of weight results. Painted steel mounting bracket included.
Standard Features Include:
- lb, oz, lb-oz, kg and g weighing units
- Ability to drive up to four 350Ù load cells
- Up to 20,000 lb/kg capacity with 20,000d maximum displayed default weighing resolution
- 6,000d NTEP certified and Measurement Canada approved Legal-for-Trade weighing resolution
- Minimum parts counting average piece weight of 1d
- Built-in bi-directional RS232C for printing or connection to PC
- Adjustable filtering levels to meet the requirements of industrial environments
| Model |
T31P |
T32XW |
T32MC |
T32ME |
|
|
|
|
| Price |
$264.80 |
$433.60 |
$230.40 |
$230.40 |
| Full Scale Capacity Range |
5 to 20,000 lb or kg |
| Displayed Resolution |
1:20,000 max / 1:6,000 NTEP Certified / Measurement Canada Approved |
| Legal for Trade |
NTEP 08-066 A1
Measurement Canada AM-5713C rev. 1; |
NTEP 09-090
Measurement Canada 5747C; |
| Certifications |
- |
NEMA4X/IP65 |
- |
- |
| Construction |
ABS plastic |
Stainless steel NEMA 4X/IP65; includes stainless steel table-wall mount bracket |
ABS plastic front panel with painted carbon steel rear housing; includes painted carbon steel table-wall mount bracket |
| Weight Display |
6-digit, 7-segment LCD 1 in. / 25 mm digit height, with high-contrast white LED backlight |
6-digit, 7-segment red LED 0.8in / 20mm digit height |
| Keyboard |
4-button mechanical switches, raised tactile keys |
4-button membrane switch, raised tactile keys |
4-button mechanical switches, raised tactile keys |
| Weighing Units |
lb, oz, lb-oz, kg, g |
| Extra Functions/Modes |
Parts Counting |
Parts Counting, Display Hold, Checkweighing, Weight Accumulation |
| Checkweigh Display |
- |
3 LED: Red-green-yellow (Over-Accept-Under) |
| Minimum Average Piece Weight |
1d |
| Load Cell Excitation / Input Sensitivity |
5V DC / up to 3 mV/V (min 1 ìV/d) |
| Load Cell Drive |
Up to four 350 load cells |
| Stabilization Time |
Within 2 seconds |
| Zeroing Range |
2% or 100% of capacity |
| Auto-zero Tracking |
Off, 0.5, 1 or 3 scale divisions |
| Span Calibration |
5 lb or 5 kg to 100% capacity |
| Interface |
Bidirectional RS232C |
| Operating Temperature Range |
14°F to 104°F / -10°C to 40°C
Maximum relative humidity 80 % for temperatures up to 31°C / 88°F, decreasing linearly to 50 % relative humidity at 40°C / 104°F, non condensing |
| Safety , EMC and Quality: |
EN60950, EN61326, FCC, CE, CULUS - ISO 9001:2008 |
| Power |
9 VDC, 0.5A, AC adapter or internal rechargeable, sealed lead-acid battery (100-hour typical operation with full charge) |
100-240 VAC / 50-60 Hz, internal power supply or internal rechargeable, sealed lead-acid battery (58-hour typical operation with full charge) |
9-12 VDC, 0.5A, external AC adapter |
| Enclosure Dimensions (W x D x H) |
8.2 x 2.8 x 6.5 in.
210 x 71 x 168 mm |
8.3 x 2.8 x 5.8 in.
212 x 71 x 149 mm |
7.8 x 1.8 x 5.2 in
198 x 46 x 132 mm |
| Net Weight |
3.6 lb / 1.6 kg |
7.1 lb / 3.2 kg |
1.5 lb / 0.7 kg |
| Shipping Dimensions (W x D x H) |
10.7 x 9.3 x 6.9 in
272 x 235 x 175 mm |
10.7 x 9.2 x 7.2 in
272 x 234 x 182 mm |
10.7 x 9.2 x 7.2 in
271 x 234 x 182 mm |
| Shipping Weight |
5.7 lb / 2.6 kg |
9.7 lb / 4.4 kg |
4.0 lb / 1.8 kg |
|
| Ohaus 5000 Sereis Indicators |
T51P |
T51XW |
$408.00 |
$612.80 |
|
Ideal for bench and floor scale use, the T51XW has a NEMA4X/IP66 water resistant stainless steel housing, a large, bright backlit display, raised tactile keys, optional battery-powered use, and is easy set-up and use. The T51XW is your solution to wet weighing applications that require multiple functions, rugged construction, comprehensive yet intuitive software and multiple connectivity options. Also available in the T51P version which has all the same features, but is not NEMA 4x / IP66 approved. |
|
Features:
- NEMA 4X/IP66 water
resistant stainless steel
housing with integral
faceplace supports for easy
servicing
- 30,000d maximum
displayed weighing
resolution with temporary
display of 10x readability
in weighing mode using quick
key press
- Quick display of results
using large LCD with
high-contrast white
backlight
- Easy to operate with
4-key membrane keypad with
raised tactile keys
- Weighs in one or more
units: kg, g, lb, oz, lb:oz
(decimal), tonnes and
user-definable custom unit
- Multiple weighing modes
including Counting, Percent
Weighing, Dynamic/Animal
Weighing, Checkweighing, and
Display Hold
- Internal universal
switching power supply with
hardwired line cord
Optional NiMH internal
rechargeable power pack
available
- Includes RS232 interface
with GMP/GLP data output
including date and time
- Optional interfaces
include DC relay control
kit, AC relay control kit,
2nd RS232 and RS485/422
| Model |
T51P |
T51XW |
| price |
$408.00 |
$655.20 |
| Display resolution |
1:30,000d |
| Counting resolution (without Auto-add) |
1:300,000d |
| Minimum APW (without Auto-add) (lb/g) |
0.1d |
| Weighing units |
kg, lb, g, oz, lb:oz, tonnes, custom |
| Weighing modes |
Static Weighing, Dynamic Weighing,
Counting, Checkweighing,
Percent Weighing, Display Hold |
| Housing |
ABS plastic with internal reinforcing ribs |
304 stainless steel enclosure |
| Display |
6-digit, 7-segment LCD, 25mm /1 inch high digits,
with high-contrast white LED backlight |
| Keyboard |
4 function membrance switches, raised tactile keys |
| Ingress Protection |
- |
NEMA 4X/ IP66
|
| Load Cell Excitation (V dc) |
5V DC |
| Load Cell Drive |
Up to 8 x 350 ohm Load Cells |
| Load Cell input sensitivity |
Up to 3 mV/V |
| Stabilization time (seconds) |
Within 2 seconds |
| Auto Zero Tracking |
Off, 0.5, 1 or 3d |
| Zeroing range |
2% or 100% of capacity |
| Span Calibration |
1 kg / lb to 100% of capacity |
| Interface |
Built-in RS232 and External Tare Input included /
Optional 2nd RS232, RS422/485,
AC Relay or DC Relay available |
| Dimensions WxHxD (in/cm) |
10.2 x 2.7 x 8.8 in /
260 x 71 x 224 mm |
10.3 x 3 x 8.7 in /
262 x 76 x 212 mm |
| Net Wt. (lb/kg) |
3.3 lb / 1.5 kg |
7.7 lb / 3.5 kg |
| Shipping Wt. (lb/kg) |
5.0 lb / 2.3 kg |
9.5 lb / 4.3 kg |
| Shipping dimensions (WxDxH) (in/cm) |
13 x 9.5 x 7 in /
330 x 240 x 180 mm |
13 x 9.5 x 7 in /
330 x 240 x 180 mm |
| Operating Temperature Range |
14°F to 104°F
-10°C to 40°C |
| Operating Humidity Range |
Maximum 80% up to 88°F/31°C,
decreasing linearly to 50% at 104°F/40°C |
| Powered By |
100-240 VAC/ 50-60 Hz Internal universal power supply, line cord / 6 'C' cell batteries (not supplied) with 80 hour life/ Opt. int. rechargeable NiMH battery (10-hr. typical operation) |
100-240 VAC/ 50-60 Hz Internal universal power supply, hardwire cord / Opt. int. rechargeable NiMH battery (10-hr. typical operation |
| Accesseries |
View |
| |

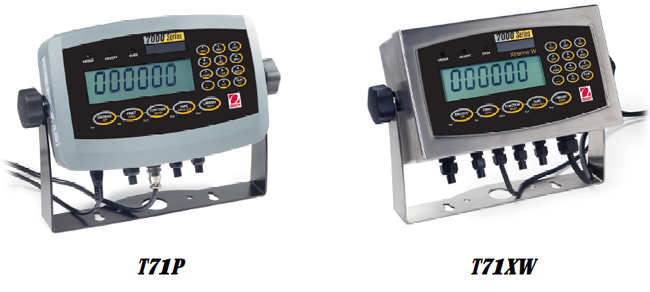

| Ohaus 7000 Series Indicators |
|
$536.00 |
$804.00 |
The OHAUS 7000 series of multifunional indicators is ideal for a ranfe of application in production, packaging, warehouse, inventory, shipping and receiving areas. Ideal for bench and floor scale use, the 7000 series is available in both dry use, ABC plastic housing as well as NEMA4X/IP66 water resistant stainless steel housing. Both housings feature large. bright dual line backlit display, raised tectile keys, battery-powered use (optional on T71XW), and are easy set-up and use. The 7000 series is the solution to your weighing indicator applications that require multiple functions, rugged construction, comprehenisve yet intuitive software and multiple connectivity opti
- T71XW High-impact, durable ABS
plastic housing with
reversible rear cover for
either wall, column, scale
front, or table-top mounting
- T71XW NEMA 4X/IP66 water resistant stainless stell housing with integral faceplate supports for easy servicing.
- 50,000d maximum
displayed weighing
resolution with temporary
display of 10x readability
in weighing mode using quick
key press
- Quick display of results
using large LCD with
high-contrast white
backlight
- Easy to operate with
postive feedback 5-function key and alpha-numeric membrane keybord
- Weighs in one or more
units: kg, g, lb, oz, lb:oz
(decimal), tonnes and
user-definable custom unit
- Multiple weighing modes
including Counting, Percent
Weighing, Dynamic/Animal
Weighing, Checkweighing,
Display Hold and Accumulation
- 255 item library function
- T71XW Internal universal
switching power supply with
hardwired line cord, T71P has the same internal power supply with universal line cord or can ber powered using 6 "c" batteries (80-hour battery life) -optional NIMH internal rechargeable power pack available for both indicator
- Includes RS232 interface
with GMP/GLP data output
including date and time and external analog base input
- Optional interfaces
include DC relay control
kit, AC relay control kit,
2nd RS232 and RS485/422
|
| Model |
T71P |
T71XW |
| Price |
$536.00 |
$804.00 |
| Capacity Range |
1 to 999,950 kg/Ib |
| Display resolution |
1:50,000d |
| Counting resolution (without Auto-add) |
1:500,000d |
| Minimum APW (without Auto-add) (lb/g) |
0.1d |
| Weighing units |
kg, lb, g, oz, lb:oz, tonnes, custom |
| Weighing modes |
Static Weighing, Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold |
| Housing |
ABS plastic with internal reinforcing ribs |
304 stainless steel enclosure |
| Display |
6-digit, 7-segment LCD, 25mm /1 inch high digits, with high-contrast white LED backlight |
| Keyboard |
Positive feedback membrane keys, 5 function keys and alpha-numeric keypad |
| Ingress Protection |
- |
NEMA 4X/ IP66
|
| Load Cell Excitation (V dc) |
5V DC |
| Load Cell Drive |
Up to 8 x 350 ohm Load Cells |
| Load Cell input sensitivity |
Up to 3 mV/V |
| Stabilization time (seconds) |
Within 2 seconds |
| Auto Zero Tracking |
Off, 0.5, 1 or 3d |
| Zeroing range |
2% or 100% of capacity |
| Span Calibration |
1 kg / lb to 100% of capacity |
| Interface |
Built-in RS232 and External Tare Input included / Optional 2nd RS232, RS422/485, AC Relay or DC Relay available |
| Dimensions WxHxD (in/cm) |
10.2 x 2.7 x 8.8 in / 260 x 71 x 224 mm |
10.3 x 3 x 8.7 in / 262 x 76 x 212 mm |
| Net Wt. (lb/kg) |
3.3 lb / 1.5 kg |
7.7 lb / 3.5 kg |
| Shipping Wt. (lb/kg) |
5.0 lb / 2.3 kg |
9.5 lb / 4.3 kg |
| Shipping dimensions (WxDxH) (in/cm) |
13 x 9.5 x 7 in / 330 x 240 x 180 mm |
13 x 9.5 x 7 in / 330 x 240 x 180 mm |
| Operating Temperature Range |
14°F to 104°F
-10°C to 40°C |
| Operating Humidity Range |
Maximum 80% up to 88°F/31°C, decreasing linearly to 50% at 104°F/40°C |
| Powered By |
100-240 VAC/ 50-60 Hz Internal universal power supply, line cord / 6 'C' cell batteries (not supplied) with 80 hour life/ Opt. int. rechargeable NiMH battery (10-hr. typical operation) |
100-240 VAC/ 50-60 Hz Internal universal power supply, hardwire cord / Opt. int. rechargeable NiMH battery (10-hr. typical operation |
Accesseries |
View |
| Ohaus CD-31 Indicators |
The Ohaus CD Industrial Indicator is the shape of things to come. Ohaus CD-31 offers functions like basic weighing, parts counting, check weighing, animal weighing and more. Smart software and hardware are enclosed in a sharp, contemporary housing. Designed to support up to four analog load cells in idustrial and laboratory applications.
-
5 weighing modes with custom unit for multi-functional weighing possibilities
-
Time, date and ID output throught built-in RS232 for GMP/GLP applications
-
Displayed resolution of up to 1:50,000 divisions
$468.00
|
| Ohaus CD-33 Indicators |
 The Ohaus CD Industrial Indicator is the shape of things to come. The Ohaus CD-33 offers functions like basic weighing, parts counting, check weighing, animal weighing and more. Smart software and hardware are enclosed in a sharp contemporary housing. Designed to support up to four analog load cells in industrial and laboratory applications.
-
5 weighing modes with custom unit for multi-functional weighing possibilities
-
Time, date and ID output throught built-in RS232 for GMP/GLP applications
-
Displayed resolution of up to 1:50,000 divisions
$468.00
|
|
Ohaus CKW-55 Checkweighing Indicators
|
 The Ohaus CKW-55 indicator offers speed, durability and ease-of-use -- designed for static checkweighing operations and other industrial applications--from general purpose to washdown.
The Ohaus CKW-55 is a full-featured static checkweighing indicator with simple functionality at a competitive price. Its multiple configurable checkweighing parameters and construction were designed with simplicity and dependability in mind that could translate to increased productivity, security and lower cost of ownership.
- Unrivaled speed of set-up and configuration for production line efficiency Intelligent design provides ease of installation and maintenance Fast response time for higher productivity
- NSF/USDA compliance for sanitary environments
- Stainless steel housing, NEMA 4X / IP66, 3rd party certified
- Includes wall-table mount bracket
- Food Safety: NSF certified, USDA-AMS accepted, supports HACCP compliance
- Configurable checkweighing setpoints: By range, variance by weight or percent
- Checkweighing indication by: 3-color 24-segment bar graph, beeper and/or display alert
- Dedicated checkweighing ´Target´ key with numeric keypad
- 20-part Library storage for item no., over, under, target and pre-set tare values
- High-contrast LED display with adjustable brightness
- ´Supervisor mode´ with setup and function lockouts
- Built-in RS232 with optional RS422/485 and AC/DC relay output
- Built-in external remote input for tare, zero, print and other operations
- Multiple weighing units: kg, g, lb, oz, lb:oz, %
- Features: beeper alert, 20-part library, auto tare/on-accept, geo factor for local gravity adjustment, GMP/GLP compliant, time/date, accumulation, configurable RS232 commands, function lockout
- 100-240 VAC universal power supply with optional internal rechargeable NiMH battery
- 1:20,000 max displayed resolution, Geo factor, GMP-Time/Date, Auto-Tare/on Accept, Accumulation
$772.00
|
| Specifications |
Model Number |
CD-31 |
CD-33 |
CKW-55 |
Price |
$468.00 |
$468.00 |
$836.80 |
Capacity (lb/kg) |
Up to 199,999 |
100,000 |
Graduation (lb/kg) |
0.0005 to 100 (capacity dependant) |
0.0002 to 50
(capacity dependant) |
| EC / OIML Approval |
YES |
NO |
YES |
| Geo Function |
NO |
YES |
Displayed Resolution |
1:10,000 LFT |
1:20,000 non-LFT |
| Legal for Trade Type Approved Resolution |
NTEP 1:10,000 LFT |
1:10,000 (NTEP pending) |
Max Displayed Resolution |
1:50000 Non LFT |
1:20,000 non-LFT |
Weighting Modes |
lb, kg, g |
lg, kg, g, custom unit |
kg, lb g, oz, lb:oz, % |
| Parts Counting |
YES |
YES |
NO |
| Dynamic Weighing |
YES |
YES |
NO |
| Percent Weighing |
NO |
YES |
YES |
| Checkweighing |
NO |
YES |
YES |
| Time/Date/GMP |
NO |
YES |
YES |
| Standard RS232 |
YES |
YES |
YES |
Functions |
weighing, parts counting, animal weighing, percent, check weighing |
weighing, checkweighing, percent weighing, USDA, NSF approved for food safety |
Internal resolution |
1:400,000 |
Over range capacity |
Max capacity + 5 divisions
|
Stabilization time |
1-4 seconds, depending on filter selection |
within 2 seconds |
Auto-zero tracking capture range |
Off, 0.5, 1, or 3 divisions |
Zeroing range |
2%, 18% or 100% of capacity |
Span Calibration |
10% to 100% of capacity |
1 kg/lb to 100% of capacity |
Load cell excitation voltage |
5VDC |
Load Cell Drive |
up to 4 x 350 ohm load cells |
Display |
Backlit LCD, 1 in / 2.54 cm digit height, 2 line, weight and prompt message |
LCD, 1 in / 2.54 cm digit height, 2 line, weight and prompt message |
3-color, 24 segment LED Bar Braph (checkweighing indication) |
| Operating Temperature Rane |
14°F to 104°F / -10°C to 40°C |
Power |
AC Adapter |
100-240 VAC / 50/60 Hz universal internal power supply hardwire cord or Rechargeable NiMH battery (optional) |
Keyboard |
8 Function, 4 Cursor Membrane Keys |
12 function + 11 numeric keys |
8 Function, 11 Numeric, with dedicated Tare and Target entry |
| Interface |
Bi-directional RS-232 with GMP data output |
Built in RS232 and external input (optional RS422/485, AC/DC relay) |
Dimensions W X D X H |
10 x 7.75 x 3.12 in / 25.4 x 19.68 x 7.92 cm |
9 x 3 x 8.5 in / 230 x 75 x 217 cm (including bracket) |
Net Weight |
1.4 lb / 0.65 kg |
6.6 lg / 3 kg |
Model Number |
CD-31 |
CD-33 |
CKW-55 |
| |
