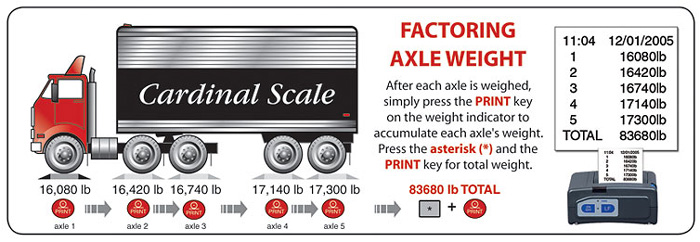

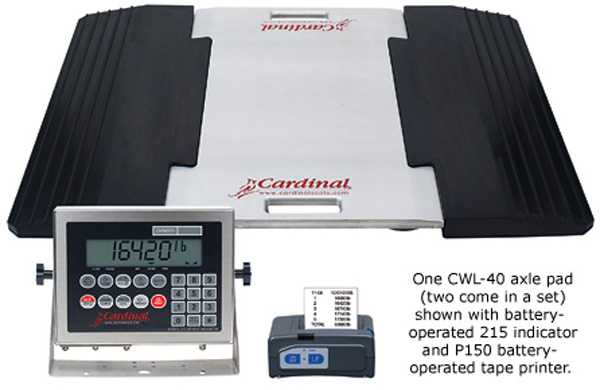

Cardinal's model CWL-40 portable axle weighers are rugged, but light enough for easy transport, weighing in at only 60 pounds per platform. They feature rechargeable battery power and can factor axle weight and gross weight. With Cardinal's model P150 battery-operated portable tape printer, you may print axle weight, gross weight, time, and date. The interlocking rubber ramps snap perfectly into place with the CWL-40's unique design.

FEATURES

• Low-profile (1.75 inch/44mm high) design with integral transport handle
• Six strain gauge load cell design Large enough to weigh dual axles
• Corrosion resistant
• Interlocking rubber ramps
• Optional cigarette lighter adapter and clamps for car battery adapter
• Rubber ramps for easy access. Ramps are interlocking and constructed from slip-resistant black rubber. Ramps measure 28 inches x 10 inches (71 x 25 cm).

Model	CWL-40	CWL-40 Bundle
Capacity x Readability Per Platform	20,000 x 20 lb	20,000 x 20 lb
	9,000 x 10 kg	9,000 x 10 kg
No of Platforms	2	2
Price	$6,300.00	$7,450.00
215 indicator	NO	YES 1
P150 Printer	NO	YES 1
Total Capacity	40,000 lb	40,000 lb
	18,000 kg	18,000 kg
Platform Size	24" L x 14" W (61 cm L x 36 cm W) weighing surface
Overall Size:	28" L x 17.5" W x 1.7" H (72 cm L x 45 cm W x 4 cm H)
Weight	60 lbs (27 kg) per platform
Safe Overload	150% of capacity
Output Per Platform	1.75mV/V
Input Resistance	750 ohms
Output Resistance	750 ohms
No. of Load Cells	6 each strain gauge load cells
Maximum Resolution	1,000 divisions
Accuracy	The greater of +/-0.3% applied load or 1 division
