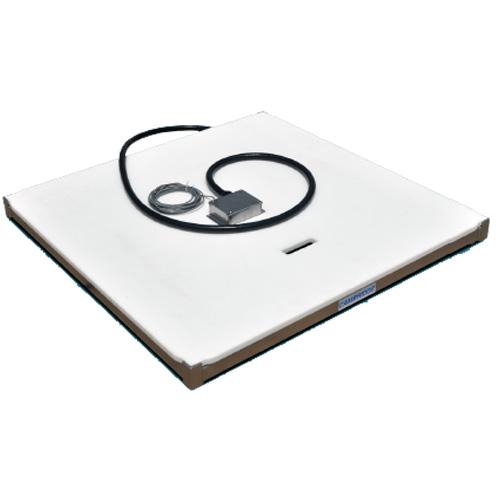

Cambridge Legal For Trade MODEL SS660-PT-R Polyethylene Top Stainless-Steel Low Profile Floor Scales REMOTE junction box

Manufacturers

Cambridge MODEL SS660-PT-R Polyethylene Top Stainless-Steel Low Profile Floor Scales with REMOTE junction box	Authorized Dealer
The SS660- PT Series Stainless Steel Low Profile Bases features an "ON-BOARD" stainless steel NEMA IV, water seal rated junction box, smooth plate stainless steel Type 304, stainless steel Type 304 construction, capped and sealed stainless steel structural tubing, stainless steel IP67 water seal rated load cells, 20 ft. shielded signal cable, 100% end loading protection, 200% overload & shock load protection, and easy access leveling
Cambridge Scales >> Floor Scales

Base Only Indicator Sold Separately

Legal For Trade

Model SS660-PT-OB Features:

Model SS660-PT-R Features:

All of the above except with "REMOTE" stainless steel NEMA IV, water seal rated junction box and 10" Sealite flex conduit

Model SS660-PT Stainless Steel Options:

Model SS660-PT Stainless Steel Accessories:

Harsh Environment Package	Capped and sealed tubes. Sandblasting cold zinc epoxy coading. Urethane enamel topcoat. Stainless Steel hermetically sealed load cells. Stainless Steel leveling feet. Stainless Steel hardware. Remote Stainless Steel "J" Box.
"FM" Approved load cells.	"FM" Approved load cells.

Cambridge MODEL 660SS Stainless-Steel Low Profile Floor Scales
Price From: $3505.50

Select Indicator (Must be added with scale)
	Cambridge (SSCSW-10AT) NTEP Stainless Steel , Add $585.00
	Cambridge (SSCSW-10AT-B) NTEP Stainless Steel & Battery , Add $715.50
	Cambridge (CSW-15AT) NTEP Wireless , Add $985.50
	Cambridge (CSW-15AT-B) NTEP Wireless & Battery , Add $1138.50
	Cambridge (CSW-20AT) NTEP Numeric Keypad , Add $652.50
	Cambridge (CSW-20AT-B) NTEP Numeric Keypad & Battery , Add $805.50
	Cambridge (SSCSW-20AT) NTEP Stainless Steel Numeric Keypad , Add $855.00
	Cambridge (SSCSW-20AT-B) NTEPStainless Steel Numeric Keypad & Battery , Add $967.50

(Some Factory Installed)

Indicator Column\Stand
	Cambridge -50481 Attached Stainless-Steel Indicator 48 inch Column with Indicator Mounting Plate, add $697.50

Ramps
	Cambridge RSS6PT2438 SS660-PT Series Stainless Steel Low Profile Ramp 24 x 48 x 3.75 / 2,500 lb, add $1,030.50
	Cambridge RSS6PT3048 SS660-PT Series Stainless Steel Low Profile Ramp 30 x 48 x 3.75 / 2,500 lb, add $1,161.00
	Cambridge RSS6PT3648 SS660-PT Series Stainless Steel Low Profile Ramp 36 x 48 x 3.75 / 5000 lb, add $1,291.50
	Cambridge RSS6PT6048 SS660-PT Series Stainless Steel Low Profile Ramp 60 x 48 x 3.75 / 10000 lb, add $1,912.50

Pit Form
	Cambridge PFS6PT2424 SS660-PT Series Stainless Steel Low Profile Pitform 24 x 24 x 3.75, add $828.00
	Cambridge PFS6PT3030 SS660-PT Series Stainless Steel Low Profile Pitform 30 x 30 x 3.75, add $931.50
	Cambridge PFS6PT3636 SS660-PT Series Stainless Steel Low Profile Pitform 36 x 36 x 3.75, add $1,035.00
	Cambridge PFS6PT4848 SS660-PT Series Stainless Steel Low Profile Pitform 48 x 48 x 3.75, add $1,242.00
	Cambridge PFS6PT4860 SS660-PT Series Stainless Steel Low Profile Pitform 48 x 60 x 3.75, add $1,345.50
	Cambridge PFS6PT4872 SS660-PT Series Stainless Steel Low Profile Pitform 48 x 72 x 3.75, add $1,440.00
	Cambridge PFS6PT6060 SS660-PT Series Stainless Steel Low Profile Pitform 60 x 60 x 3.75, add $1,440.00

Single Side Bumper Guard
	Cambridge BGSS660PT24 Stainless Steel Bumper Guard Single Sided for SS660-PT Series - 24 x 3.75, add $207.00
	Cambridge BGSS660PT30 Stainless Steel Bumper Guard Single Sided for SS660-PT Series - 30 x 3.75, add $234.00
	Cambridge BGSS660PT36 Stainless Steel Bumper Guard Single Sided for SS660-PT Series - 36 x 3.75, add $261.00
	Cambridge BGSS660PT48 Stainless Steel Bumper Guard Single Sided for SS660-PT Series - 48 x 3.75, add $310.50
	Cambridge BGSS660PT60 Stainless Steel Bumper Guard Single Sided for SS660-PT Series - 60 x 3.75, add $364.50
	Cambridge BGSS660PT72 Stainless Steel Bumper Guard Single Sided for SS660-PT Series - 72 x 3.75, add $414.00
	Cambridge BGSS660PT84 Stainless Steel Bumper Guard Single Sided for SS660-PT Series - 84 x 3.75, add $517.50

4 Side Bumper Guard
	Cambridge BG660PT2424 Stainless Steel Bumper Guard Surround for SS660-PT Series - 24 x 24 x 3.75, add $877.50
	Cambridge BG660PT3030 Stainless Steel Bumper Guard Surround for SS660-PT Series - 30 x 30 x 3.75, add $981.00
	Cambridge BG660PT3636 Stainless Steel Bumper Guard Surround for SS660-PT Series - 36 x 36 x 3.75, add $1,089.00
	Cambridge BG660PT4848 Stainless Steel Bumper Guard Surround for SS660-PT Series - 48 x 48 x 3.75, add $1,291.50
	Cambridge BG660PT4860 Stainless Steel Bumper Guard Surround for SS660-PT Series - 48 x 60 x 3.75, add $1,395.00
	Cambridge BG660PT4872 Stainless Steel Bumper Guard Surround for SS660-PT Series - 48 x 72 x 3.75, add $1,498.50
	Cambridge BG660PT6060 Stainless Steel Bumper Guard Surround for SS660-PT Series - 60 x 60 x 3.75, add $1,498.50
	Cambridge BG660PT6084 Stainless Steel Bumper Guard Surround for SS660-PT Series - 60 x 84 x 3.75, add $1,809.00

Model	Size (Inch)	Capacity x Readability	Legal For Trade		Price Base Only
S660PT24241	24 x 24 x 3.75	1,000 x 0.1 lb	NO	-	$3,667.50
S660PT24242	24 x 24 x 3.75	2,500 x 0.2 lb	NO	-	$3,667.50
S660PT30301	30 x 30 x 3.75	1,000 x 0.1 lb	NO	-	$3,865.50
S660PT36361	30 x 30 x 3.75	2,500 x 0.2 lb	NO	-	$3,865.50
S660PT36362	36 x 36 x 3.75	1,000 x 0.1 lb	NO	-	$4,297.50
S660PT36365	36 x 36 x 3.75	2,500 x 0.2 lb	NO	-	$4,297.50
S660PT48481	36 x 36 x 3.75	5,000 x 0.5 lb	NO	-	$4,297.50
S660PT48482	48 x 48 x 3.75	1,000 x 0.1 lb	NO	-	$4,585.50
S660PT48485	48 x 48 x 3.75	2,500 x 0.2 lb	NO	-	$4,585.50
S660PT48483	48 x 48 x 3.75	5,000 x 0.5 lb	#96-157A1	5,000 x 1 lb	$4,585.50
S660PT48605	48 x 48 x 3.75	10,000 x 1 lb	#96-157A1	10,000 x 2 lb	$5,125.50
S660PT48603	48 x 60 x 3.75	5,000 x 0.5 lb	#96-157A1	5,000 x 1 lb	$5,215.50
S660PT48725	48 x 60 x 3.75	10,000 x 1 lb	#96-157A1	10,000 x 2 lb	$6,255.00
S660PT48725	48 x 72 x 3.75	5,000 x 0.5 lb	#96-157A1	5,000 x 1 lb	$5,715.00
3860-1016-SS	48 x 72 x 3.75	10,000 x 1 lb	#96-157A1	10,000 x 2 lb	$6,975.00
S660PT60601	60 x 60 x 3.75	5,000 x 0.5 lb	#96-157A1	5,000 x 1 lb	$4,855.50
3860-1019-SS	60 x 60 x 3.75	10,000 x 1 lb	#96-157A1	10,000 x 2 lb	$7,065.00
3860-1020-SS	60 x 60 x 4.75	20,000 x 2 lb	#96-157A1	20,000 x 4 lb	$8,122.50
3860-1021-SS	60 x 84 x 4.75	10,000 x 1 lb	#96-157A1	10,000 x 2 lb	$8,235.00
3860-1022-SS	60 x 84 x 4.75	20,000 x 2 lb	#96-157A1	20,000 x 4 lb	$10,075.50
